SALTEK
SKU:A02491
SLP-275 V/1S+1
SLP-275 V/1S+1
Couldn't load pickup availability

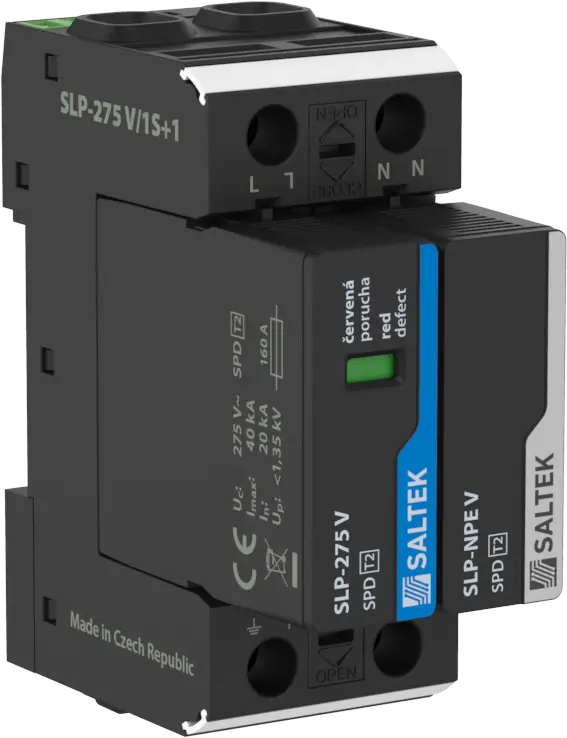

SALTEK SLP-275 V/1S+1 — Pluggable module, visual fault signalling, module locking, remote fault signalling, combination of varistor surge arrester and encapsulated spark gap, connected in the 1+1 mode, installation to LV installations, especially to sub-distribution boards in TT and also TN-S systems, for protection of the installations and equipments against impact of induced overvoltages during a lightning strike or switching overvoltages.
Technical specifications
| SALTEK order number | A02491 |
|---|---|
| EAN | 8595090524915 |
| Nominal voltage | 230 V |
| Maximum operating voltage | 275 V AC |
| Nominal discharge current | 20 kA |
| Voltage protection level | 1.5 kV |
| ETIM class | EC000941 |
| Net weight | 225 g |
| Packing dimensions | 124 × 82 × 43 mm |
