SALTEK
SKU:A04132
ISG-100H Ex
ISG-100H Ex
Price on request
Shipping calculated at checkout.

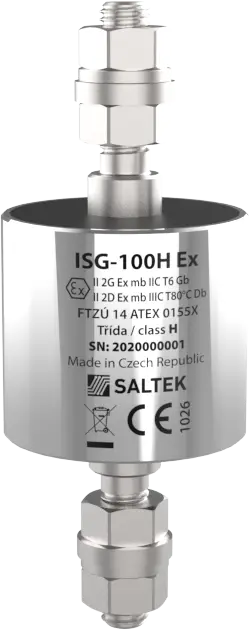

SALTEK ISG-100H Ex — Two M8 bolts with nuts, stainless steel enclosure, heavy duty encapsulated isolating spark gap for use in Hazardous (Ex) Areas II2G Ex mb IIC T6 Gb and II2D Ex tb IIIC T80 °C Db, for indirect connection (earthing) of isolated conductive parts under lightning conditions, for safe installation in Ex zone 1 (gas) or 21 (dust).
Technical specifications
| SALTEK order number | A04132 |
|---|---|
| EAN | 8595090541325 |
| Lightning impulse current | 100 kA |
| Rated impulse sparkover voltage | 0.95 kV |
| ETIM class | EC000510 |
| Net weight | 205 g |
| Packing dimensions | 105 × 72 × 26 mm |
