SALTEK
SKU:A04212
FX-090-F75 F/F
FX-090-F75 F/F
Price on request
Shipping calculated at checkout.

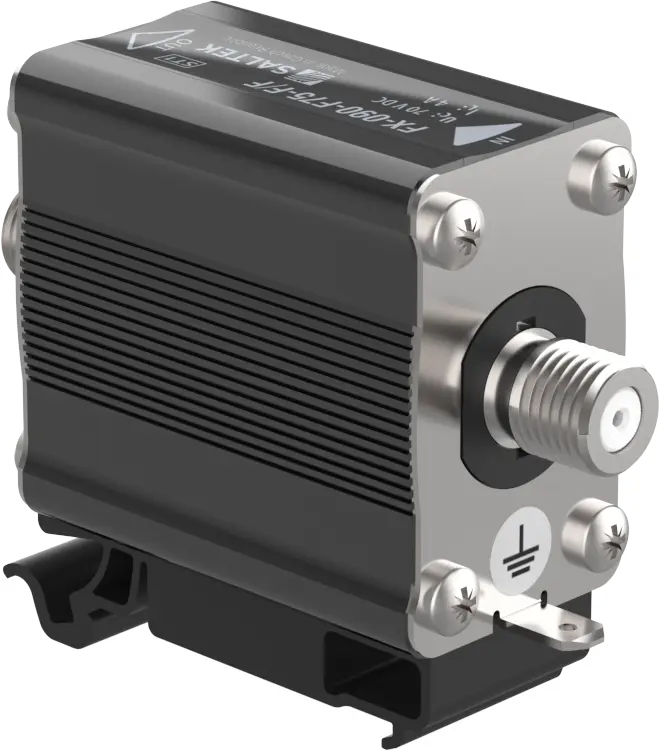

SALTEK FX-090-F75 F/F — F Connectors 75 ?, lightning current arrester with grounded shielding, installation at the boundary of LPZ 0 and LPZ 1 zones at the line entry into building, for protection of coaxial lines of TV/SAT receivers and CCTV systems, suitable as the 1st level of surge protection in coordination with the SX type, suitable for DC power distribution, lower Up (core-PE).
Technical specifications
| SALTEK order number | A04212 |
|---|---|
| EAN | 8595090542124 |
| Nominal voltage | 70 V |
| Maximum operating voltage (DC) | 70 V DC |
| Nominal load current | 4 A |
| Frequency / bandwidth value | 2300 MHz |
| ETIM class | EC000943 |
| Net weight | 120 g |
| Packing dimensions | 95 × 70 × 40 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
