DMS-048T
DMS-048T

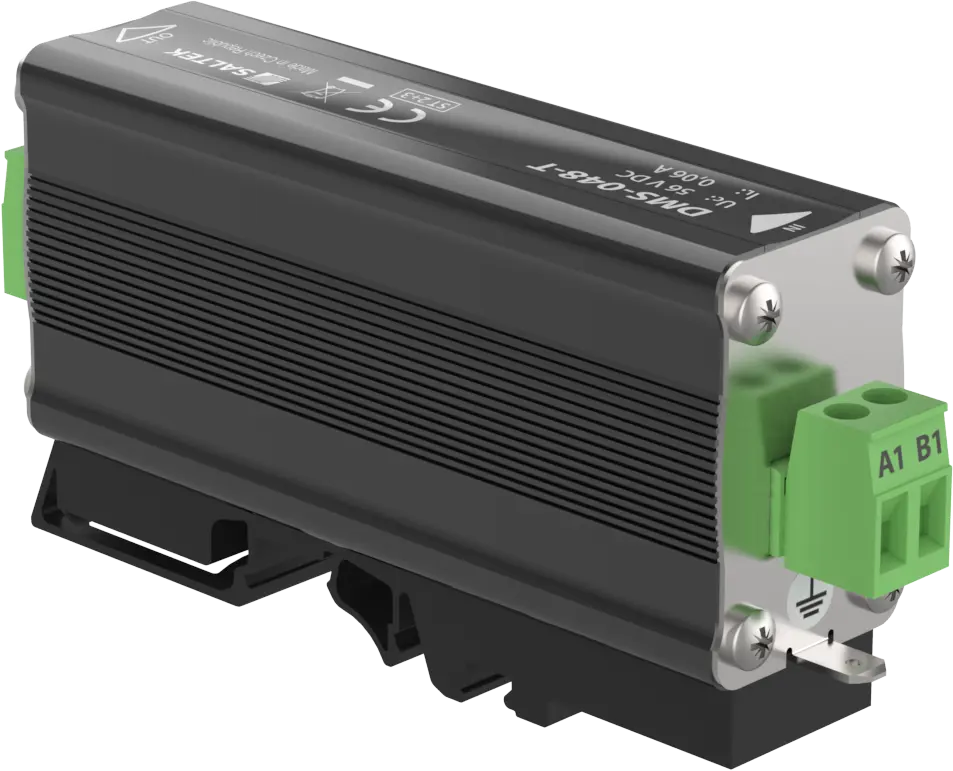

SALTEK DMS-048T — Coupling impedance (resistance), special two-stage surge protection of 2-core signalling line with current limiting, installation close to protected equipment, for protection of communication interfaces, mainly the measuring loops, of I<(>&<)>C, electronic security and fire detection systems, etc. against surge voltage where are long parallel lines with power network, coarse and fine surge protection in differential mode (core – core) and coarse surge protection in common mode (core – PE).
Technical specifications
| SALTEK order number | A06597 |
|---|---|
| EAN | 8595090565970 |
| Nominal voltage | 48 V |
| Maximum operating voltage | 39 V AC |
| Maximum operating voltage (DC) | 56 V DC |
| Nominal load current | 0.06 A |
| Frequency / bandwidth value | 1.8 MHz |
| ETIM class | EC000943 |
| Net weight | 140 g |
| Packing dimensions | 120 × 80 × 35 mm |
