Relpol SU4L – Relay Modules & Accessories
Relpol SU4L – Relay Modules & Accessories
Price on request
Dostava se obračuna ob zaključku nakupa.

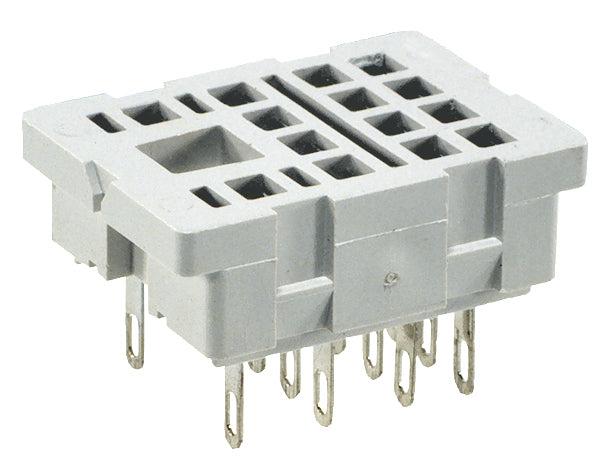

Soldering plug socket for the R4N relay, for soldering. Mounted in the mounting plate hole and fastened with a G4 1040 latch. Dimensions: 29.6 x 21.5 x 18.1 mm. Track load capacity: 6 A / 250 V AC. Clamp: G4 1053.
Technical specifications
| Mounting | For soldering |
|---|---|
| Depth | 29,6 |
| Width mm | 21,5 |
| Height mm | 18,1 |
| Weight kg | 0,007 |
| ETIM class | EC001456 |
| Relay type | SU4L |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
