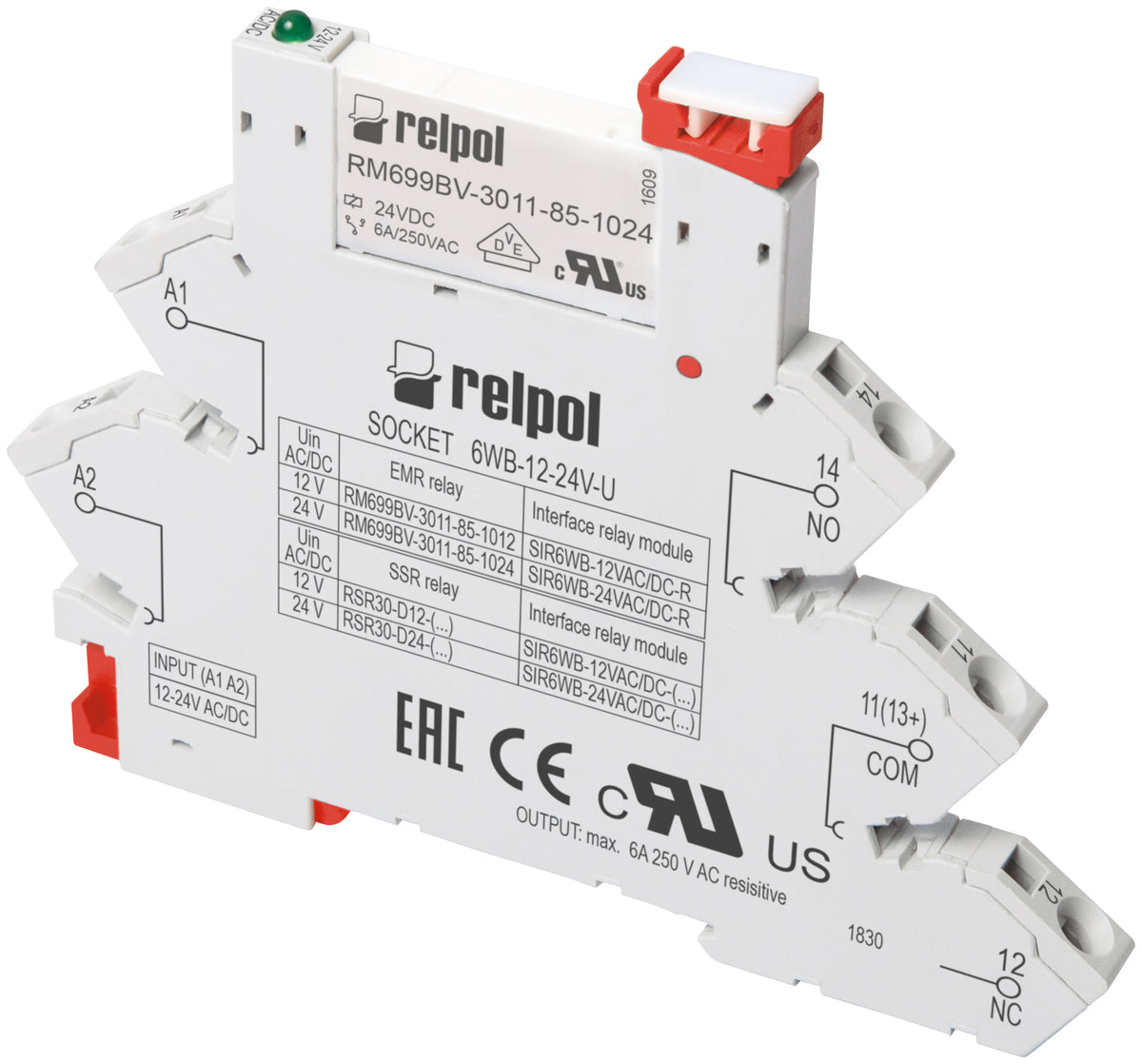

Relpol SIR6WB-6VDC-R01 – Interface Relays

Name: Relpol SIR6WB-6VDC-R01 – Interface Relays
Brand: Relpol
SKU: SIR6WB-6VDC-R01
Availability: InStock

Price on request

Sold out

Shipping calculated at checkout.

Request a price

Interface relay: consists with:universal socket 6WB-6-24VDC and relay RM699BV-3011-85-1005. Width: 6,2 mm. AgSnO2/Au hard gold plating, 6 V DC, Rated load AC1 - 6A/250 V; DC1 - 6A/30 V, Operating temperature °C -40…+70, Dimensions: 95x 6,2 x 76.6 mm. IP 20. Mounting on 35 mm rail

Technical specifications

Type of coil supply	DC
Coil voltage	6 V
Contact material	AgSnO2/Au hard gold plating
Number and type of contacts	1 CO
Rated load AC1	6 A / 250 V AC
Rated load DC1	6 A / 30 V DC
Mounting	mounting on 35 mm rail
Depth	95
Width mm	6,2
Height mm	76,6
Weight kg	0,03
ETIM class	EC001437
Relay type	SIR6WB
Ip cover	IP 20
