Relpol
SKU:RUC-3013-26-1110

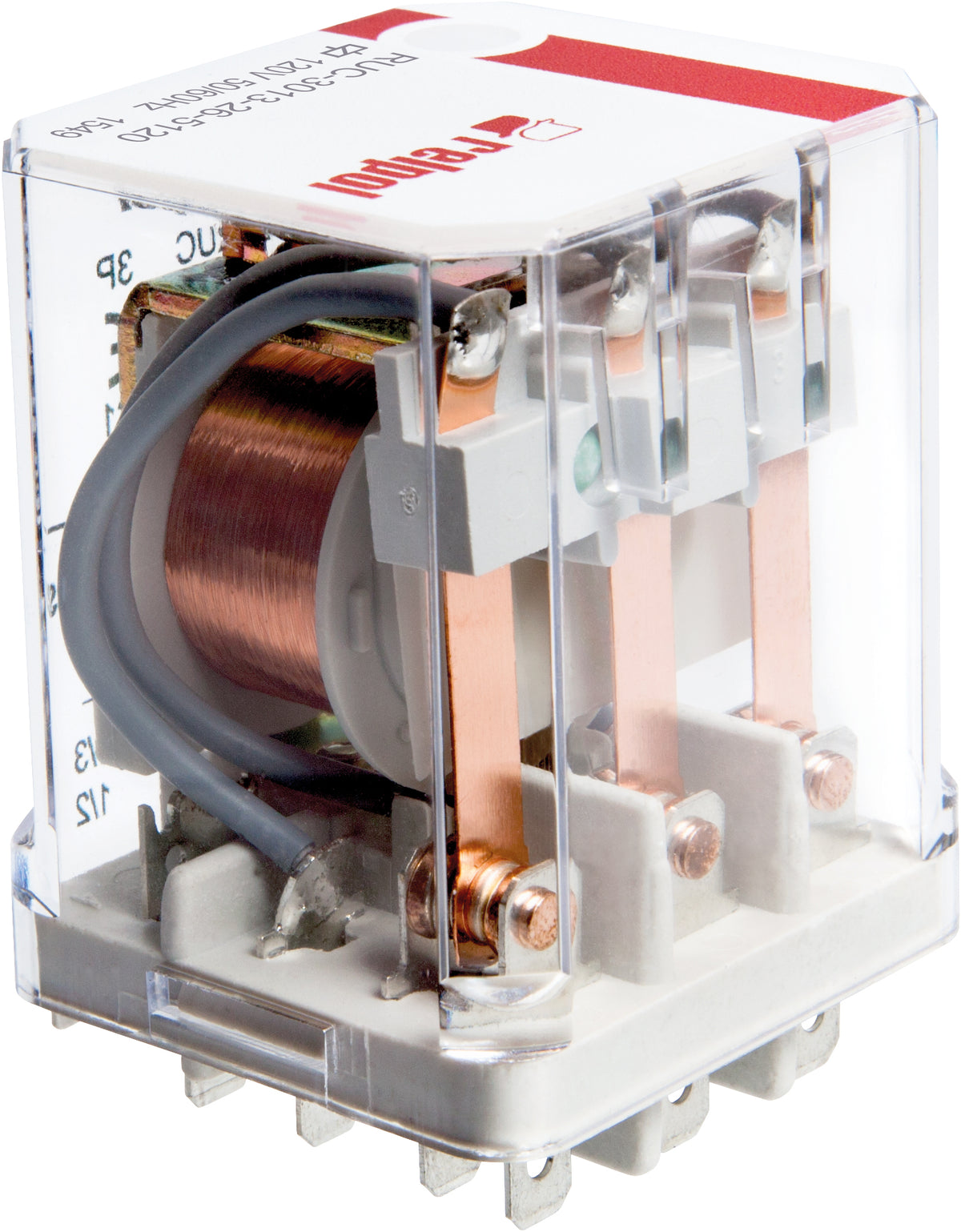

Relpol RUC-3013-26-1110 – Industrial Relays
Relpol RUC-3013-26-1110 – Industrial Relays
Price on request
Shipping calculated at checkout.
Industrial relays RUC-3013-26-1110-L, 3 CO. Contact material: AgSnO2. Voltage coil 110 V DC. Rated load AC1 16 A / 250 V AC. Mounting: for plug-in sockets and for flat insert connectors - faston 187 . Cover protection category .
Technical specifications
| Type of coil supply | DC |
|---|---|
| Coil voltage | 110 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 3 CO |
| Rated load AC1 | 16 A / 250 V AC |
| Rated load DC1 | 16 A / 24 V DC |
| Rated switching voltage | 250 V AC |
| Mounting | for plug-in sockets and for flat insert connectors - faston 187 |
| Depth | 36,1 |
| Width mm | 38,6 |
| Height mm | 52,65 |
| Weight kg | 0,08 |
| ETIM class | EC001437 |
| Relay type | RUC |
| Ip cover | IP 00 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
