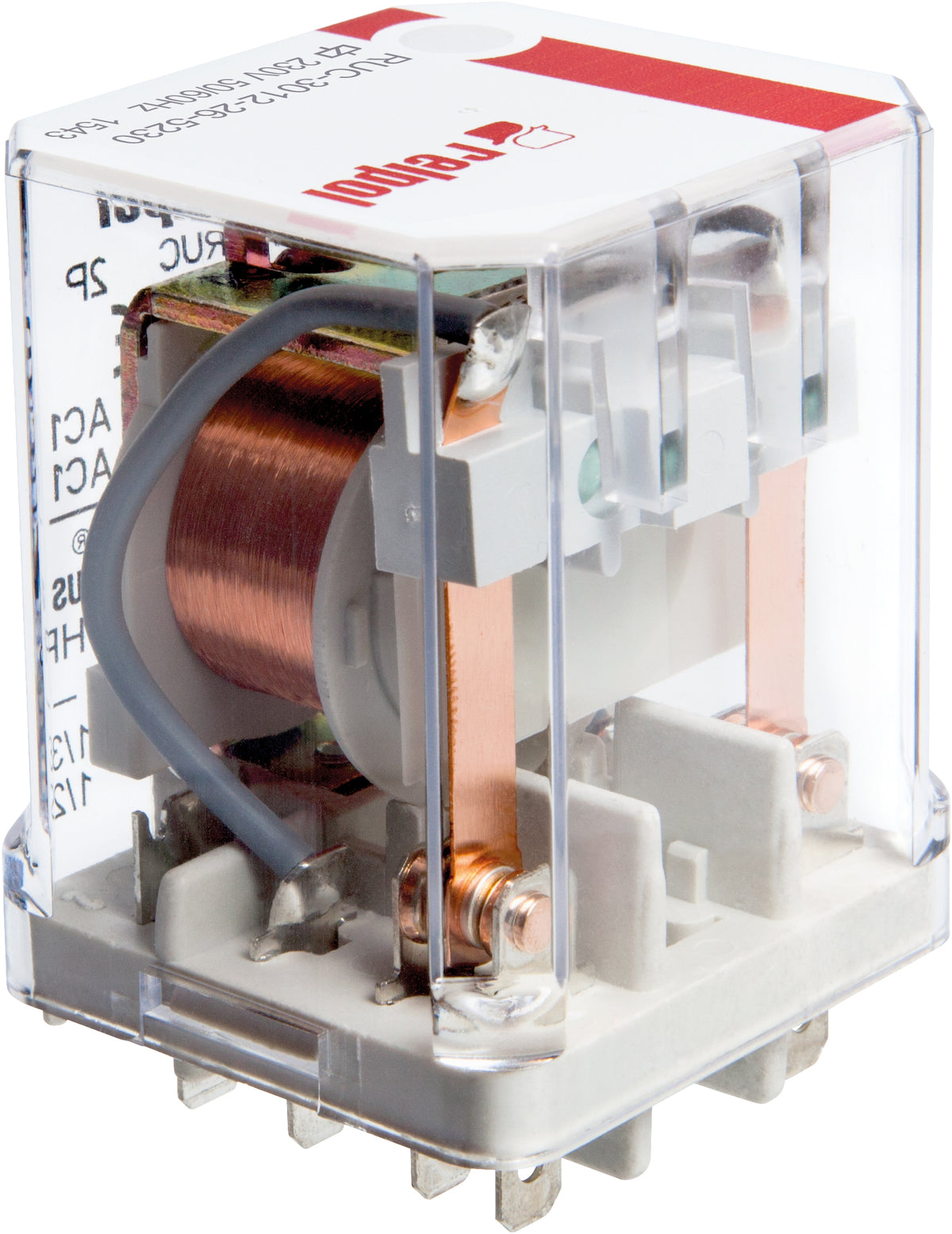

Relpol RUC-3012-4A-5230 – Industrial Relays

Name: Relpol RUC-3012-4A-5230 – Industrial Relays
Brand: Relpol
SKU: RUC-3012-4A-5230
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

Industrial relays RUC-3013-26-1006-L, 3 CO. Contact material: AgSnO2. Voltage coil 6 V DC. Rated load AC1 16 A / 250 V AC. Mounting: for plug-in sockets and for flat insert connectors - faston 187 . Cover protection category .

Technical specifications

Type of coil supply	AC
Coil voltage	230 V
Contact material	AgSnO2
Number and type of contacts	2 CO
Rated load AC1	16 A / 250 V AC
Rated load DC1	16 A / 24 V DC
Rated switching voltage	250 V AC
Mounting	for flat insert connectors - faston 250
Depth	36,1
Width mm	38,6
Height mm	66,3
Weight kg	0,085
ETIM class	EC001437
Relay type	RUC
Ip cover	IP 00
