Relpol
SKU:RUC-3012-26-5024

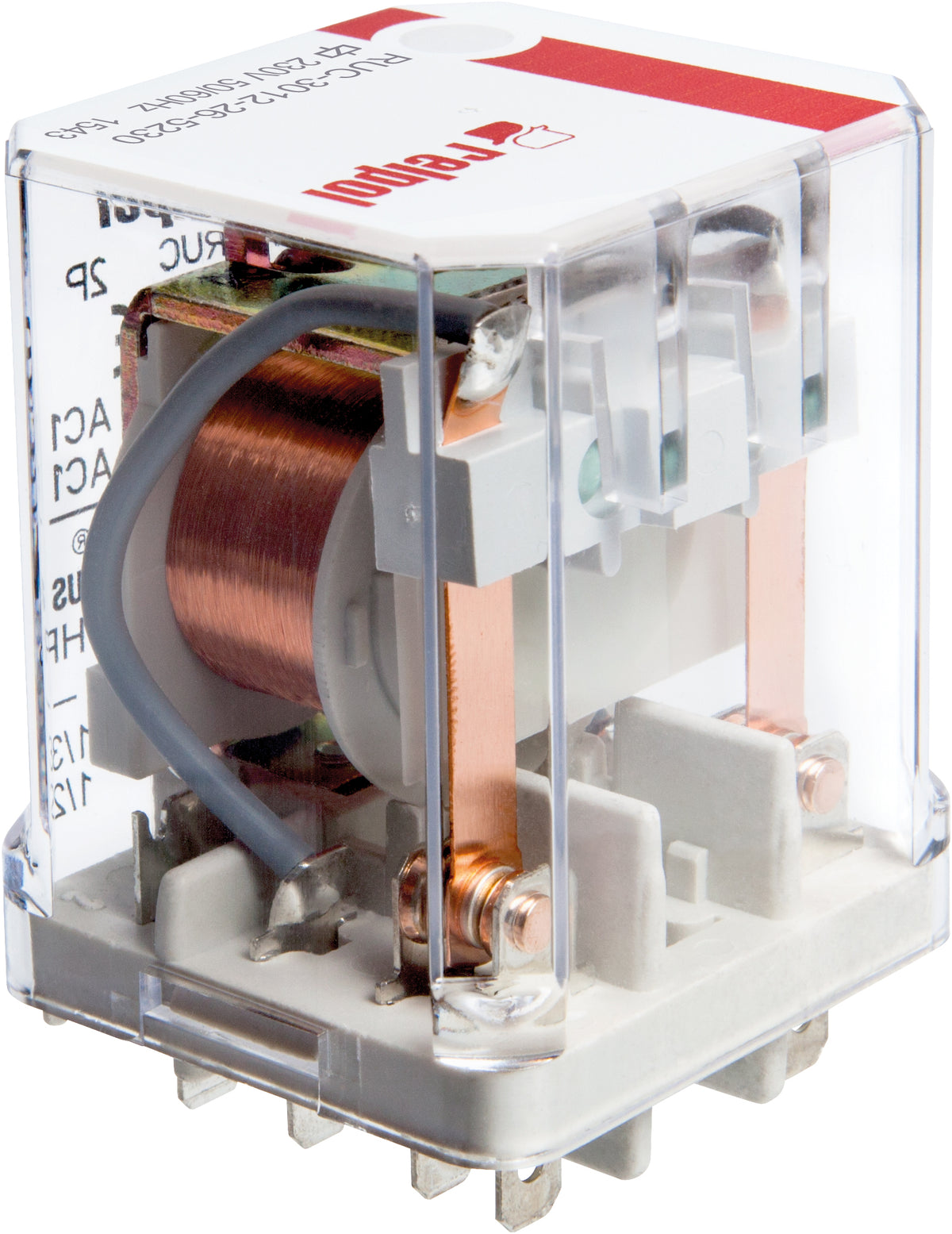

Relpol RUC-3012-26-5024 – Industrial Relays
Relpol RUC-3012-26-5024 – Industrial Relays
Price on request
Shipping calculated at checkout.
Industrial relays RUC-3012-26-5024-L, 2 CO. Contact material: AgSnO2. Voltage coil 24 V AC. Rated load AC1 16 A / 250 V AC. Mounting: for plug-in sockets and for flat insert connectors - faston 187 . Cover protection category .
Technical specifications
| Type of coil supply | AC |
|---|---|
| Coil voltage | 24 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 2 CO |
| Rated load AC1 | 16 A / 250 V AC |
| Rated load DC1 | 16 A / 24 V DC |
| Rated switching voltage | 250 V AC |
| Mounting | for plug-in sockets and for flat insert connectors - faston 187 |
| Depth | 36,1 |
| Width mm | 38,6 |
| Height mm | 52,65 |
| Weight kg | 0,08 |
| ETIM class | EC001437 |
| Relay type | RUC |
| Ip cover | IP 00 |
