Relpol
Inventarna številka:RUC-2053-25-W024

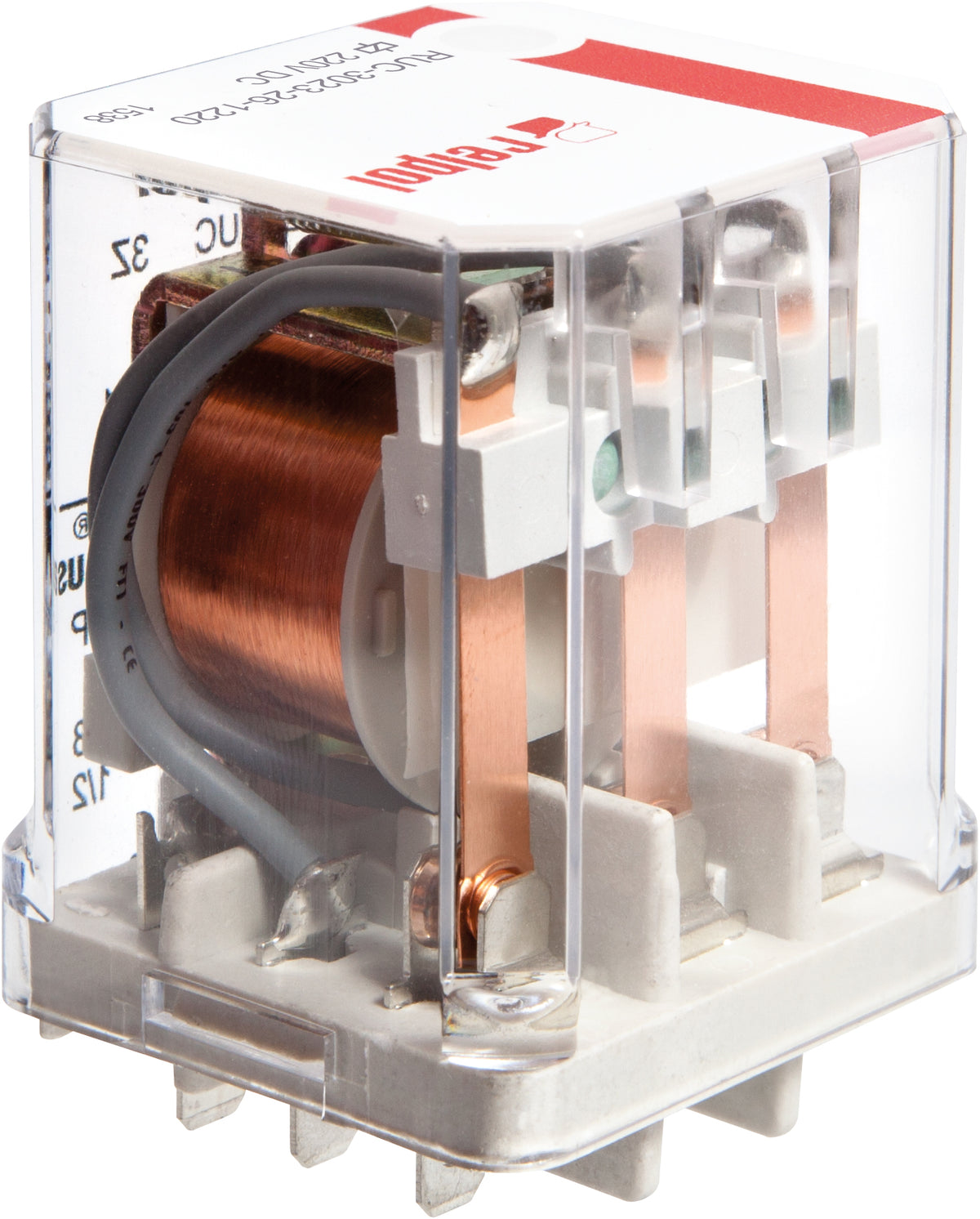

Relpol RUC-2053-25-W024 – Industrial Relays
Relpol RUC-2053-25-W024 – Industrial Relays
Price on request
Dostava se obračuna ob zaključku nakupa.
Industrial relays RUC-2053-26-W024, 3 NO contact gap ≥ 3 mm. Contact material: AgNi. Voltage coil 24 V DC, reinforced. Rated load AC1 16 A / 250 V AC. Mounting: for plug-in sockets and for flat insert connectors - faston 187 . Cover protection category .
Technical specifications
| Type of coil supply | DC, reinforced |
|---|---|
| Coil voltage | 24 V |
| Contact material | AgNi |
| Number and type of contacts | 3 NO contact gap ≥ 3 mm |
| Rated load AC1 | 16 A / 250 V AC |
| Rated load DC1 | 16 A / 24 V DC |
| Rated switching voltage | 250 V AC |
| Mounting | for PCB |
| Depth | 36,1 |
| Width mm | 38,6 |
| Height mm | 56,5 |
| Weight kg | 0,08 |
| ETIM class | EC001437 |
| Relay type | RUC |
| Ip cover | IP 00 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
Potrebujete pomoč pri izbiri komponent?
Za strokovno svetovanje in priporočila izdelkov se obrnite na našo ekipo.
