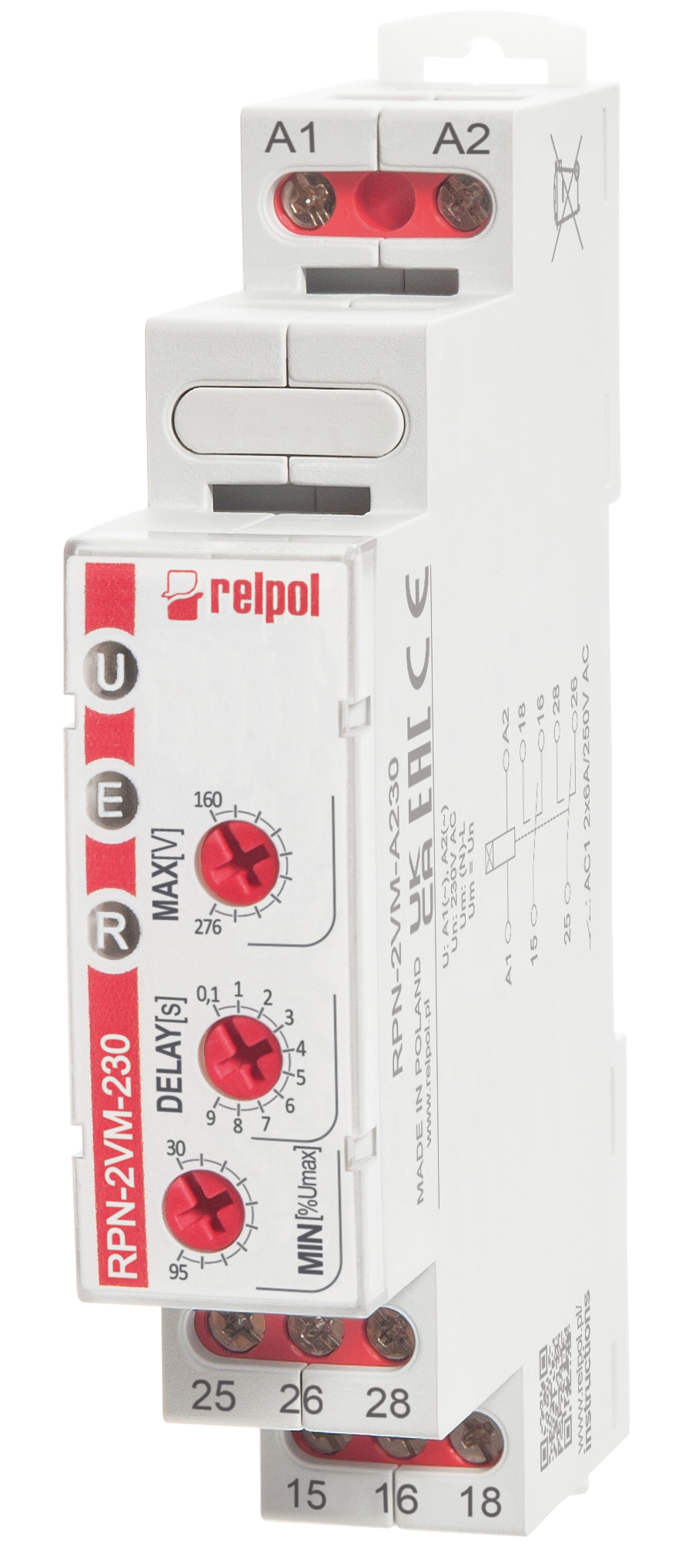

Relpol RPN-2VM-A230 – Monitoring Relays

Name: Relpol RPN-2VM-A230 – Monitoring Relays
Brand: Relpol
SKU: RPN-2VM-A230
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

Single-function monitoring relays (monitoring of AC voltage in a single-phase network – 1(N)\~ 230 V).2 changeover contacts. Monitoring of threshold exceedance Umin/Umax, phase loss. Hysteresis function. Adjustable switch-off delay time. Supply voltage AC = monitored voltage. Adjustable switching threshold.

Technical specifications

Type of coil supply	AC
Coil voltage	230 V
Contact material	AgSnO2
Number and type of contacts	2 CO
Rated load AC1	6 A / 250 V AC
Rated load DC1	6 A / 24 V DC
Mounting	mounting on 35 mm rail
Depth	90
Width mm	17,5
Height mm	64,6
Weight kg	0,0642
ETIM class	EC001440
Relay type	RPN
Ip cover	IP 20
