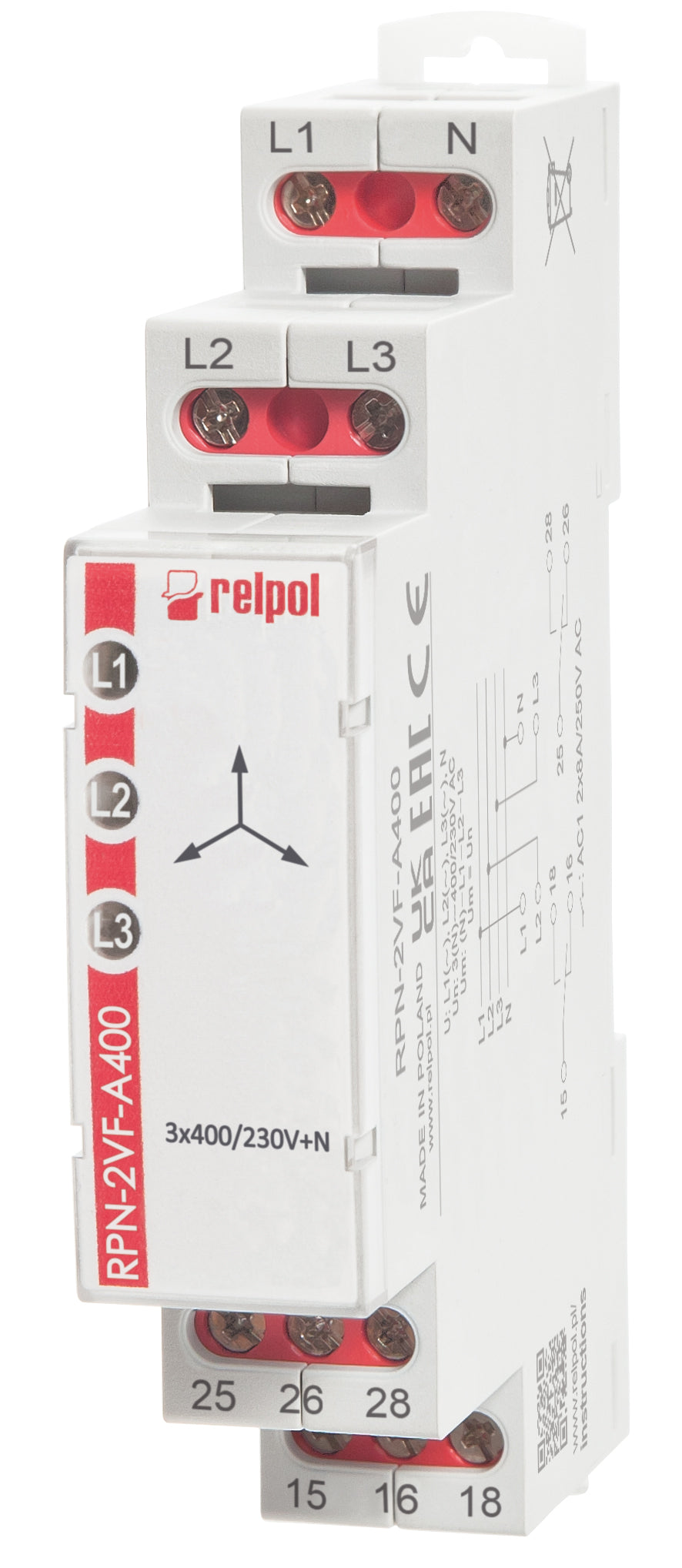

Relpol RPN-2VF-A400 – Monitoring Relays

Name: Relpol RPN-2VF-A400 – Monitoring Relays
Brand: Relpol
SKU: RPN-2VF-A400
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

Multifunctions monitoring relay, AC voltage monitoring in 3-phase network 3(N) ~ 400/230 V; 2 CO; 400 V AC; Rated load: AC1 12A / 250 V AC, DC1 12A/ 24 V DC; Rated input voltage: 50/60 Hz: 3(N)~ 400/230 V

Technical specifications

Type of coil supply	AC
Coil voltage	Monitoring voltage
Contact material	AgSnO2
Number and type of contacts	2 CO
Rated load AC1	12 A / 250 V AC
Rated load DC1	12 A / 24 V DC
Mounting	mounting on 35 mm rail
Depth	90
Width mm	17,5
Height mm	64,6
Weight kg	0,072
ETIM class	EC001438
Relay type	RPN
Ip cover	IP 20
