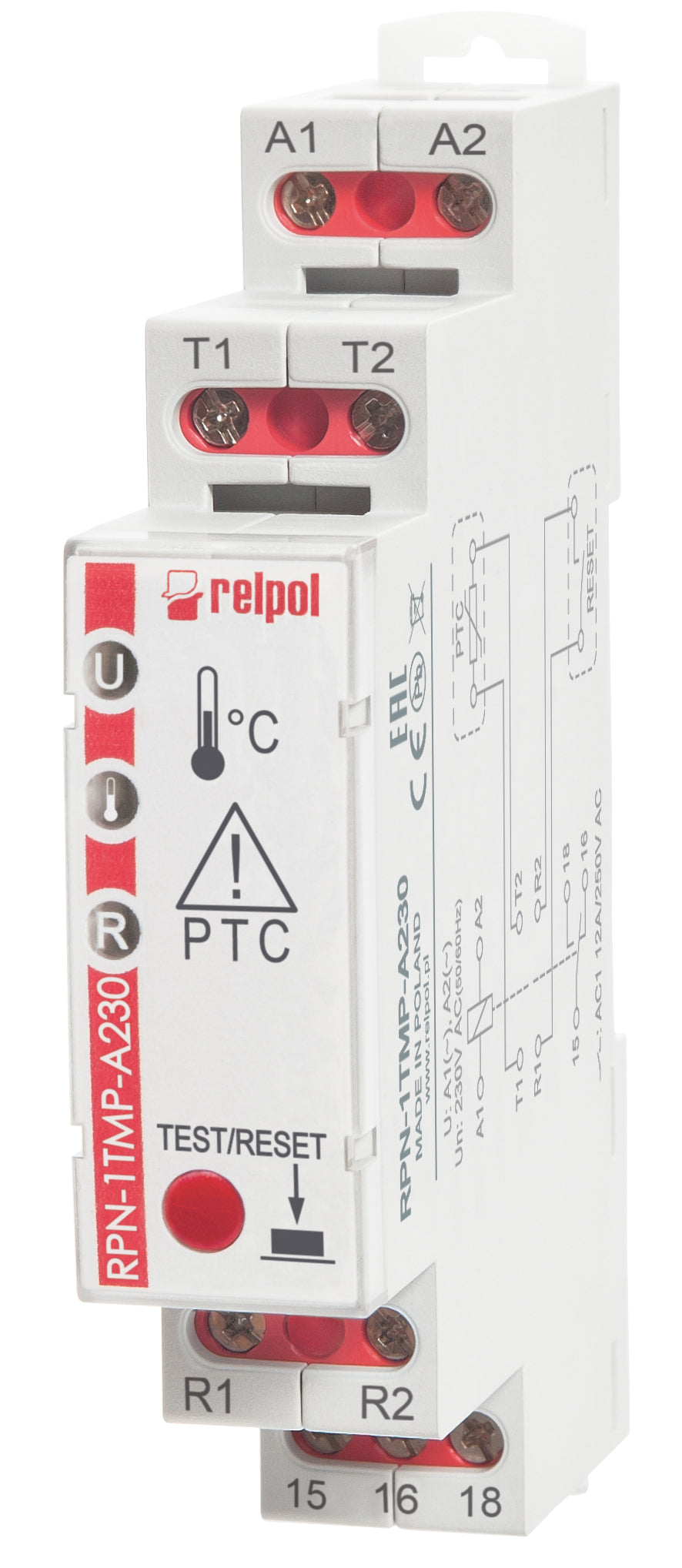

Relpol RPN-1TMP-A230 – Monitoring Relays
Relpol RPN-1TMP-A230 – Monitoring Relays
Price on request
Shipping calculated at checkout.
Single-functions monitoring relay, motor temperature monitoring; 1 CO; 230 V AC; Rated load: AC1 12A / 250 V AC, DC1: 12 A / 24 V DC; Rated input voltage 50/60 Hz: 230 V
Technical specifications
| Type of coil supply | AC |
|---|---|
| Coil voltage | 230 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 1 CO |
| Rated load AC1 | 12 A / 250 V AC |
| Rated load DC1 | 12 A / 24 V DC |
| Mounting | mounting on 35 mm rail |
| Depth | 90 |
| Width mm | 17,5 |
| Height mm | 64,6 |
| Weight kg | 0,07 |
| ETIM class | EC001446 |
| Relay type | RPN |
| Ip cover | IP 20 |
