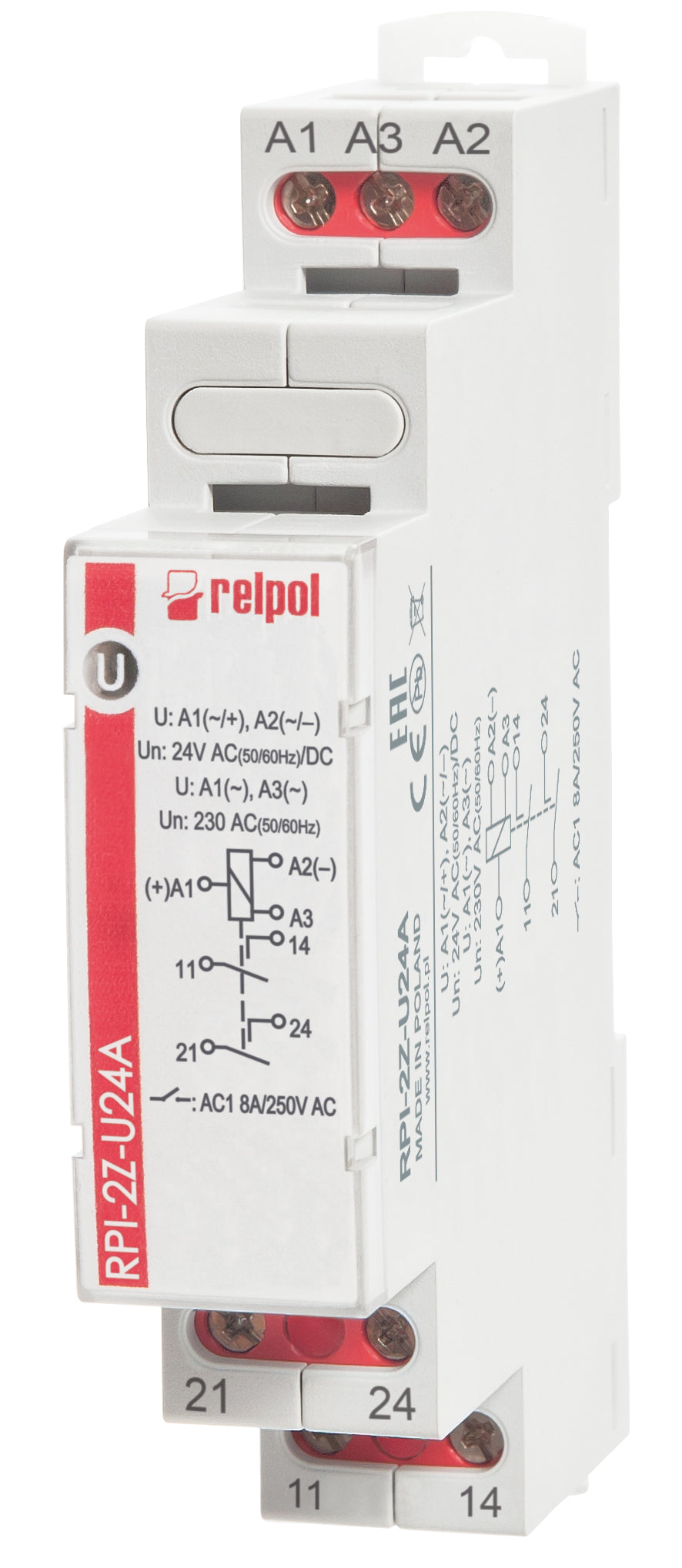

Relpol RPI-2Z-U24A – Industrial Relays

Name: Relpol RPI-2Z-U24A – Industrial Relays
Brand: Relpol
SKU: RPI-2Z-U24A
Availability: InStock

Price on request

Sold out

Shipping calculated at checkout.

Request a price

Modular installation Relays RPI-2Z-U24A, 2 NO. Contact material: AgSnO2. Voltage coil 24 V or 230 V AC/DC. Rated load AC1 8 A / 250 V AC, mounting on 35 mm rail. Cover protection category IP 20.

Technical specifications

Type of coil supply	AC/DC
Coil voltage	24 V or 230 V
Contact material	AgSnO2
Number and type of contacts	2 NO
Rated load AC1	8 A / 250 V AC
Rated load DC1	8 A / 24 V DC
Rated switching voltage	300 V AC
Mounting	mounting on 35 mm rail
Depth	90
Width mm	17,5
Height mm	64,6
Weight kg	0,065
ETIM class	EC001652
Relay type	RPI
Ip cover	IP 20
