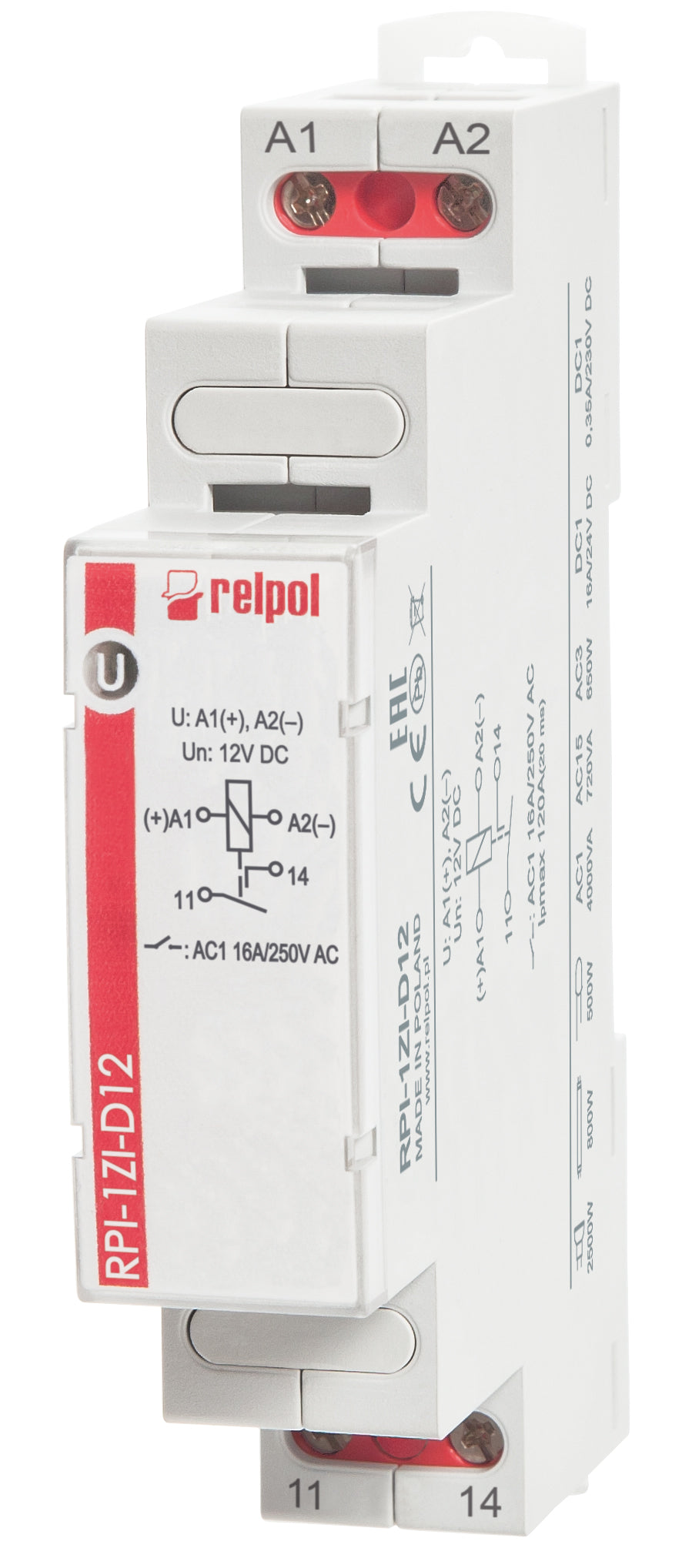

Relpol RPI-1ZI-D12 – Industrial Relays

Name: Relpol RPI-1ZI-D12 – Industrial Relays
Brand: Relpol
SKU: RPI-1ZI-D12
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

Electromagnetic relay in an installation module enclosure with a surge current resistance of 120 A for 20 ms. Width: 17.5 mm. Contacts: 1Z (normally closed). Load capacity: 16A. Coil voltage: 12 V DC. Material: AgSnO2.

Technical specifications

Type of coil supply	DC
Coil voltage	12 V
Contact material	AgSnO2
Number and type of contacts	1 NO
Rated load AC1	16 A / 250 V AC
Rated load DC1	16 A / 24 V DC
Rated switching voltage	300 V AC
Mounting	mounting on 35 mm rail
Depth	90
Width mm	17,5
Height mm	64,6
Weight kg	0,068
ETIM class	EC001652
Relay type	RPI
Ip cover	IP 20
