Relpol RPI-1P-D48 – Industrial Relays

Name: Relpol RPI-1P-D48 – Industrial Relays
Brand: Relpol
SKU: RPI-1P-D48
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

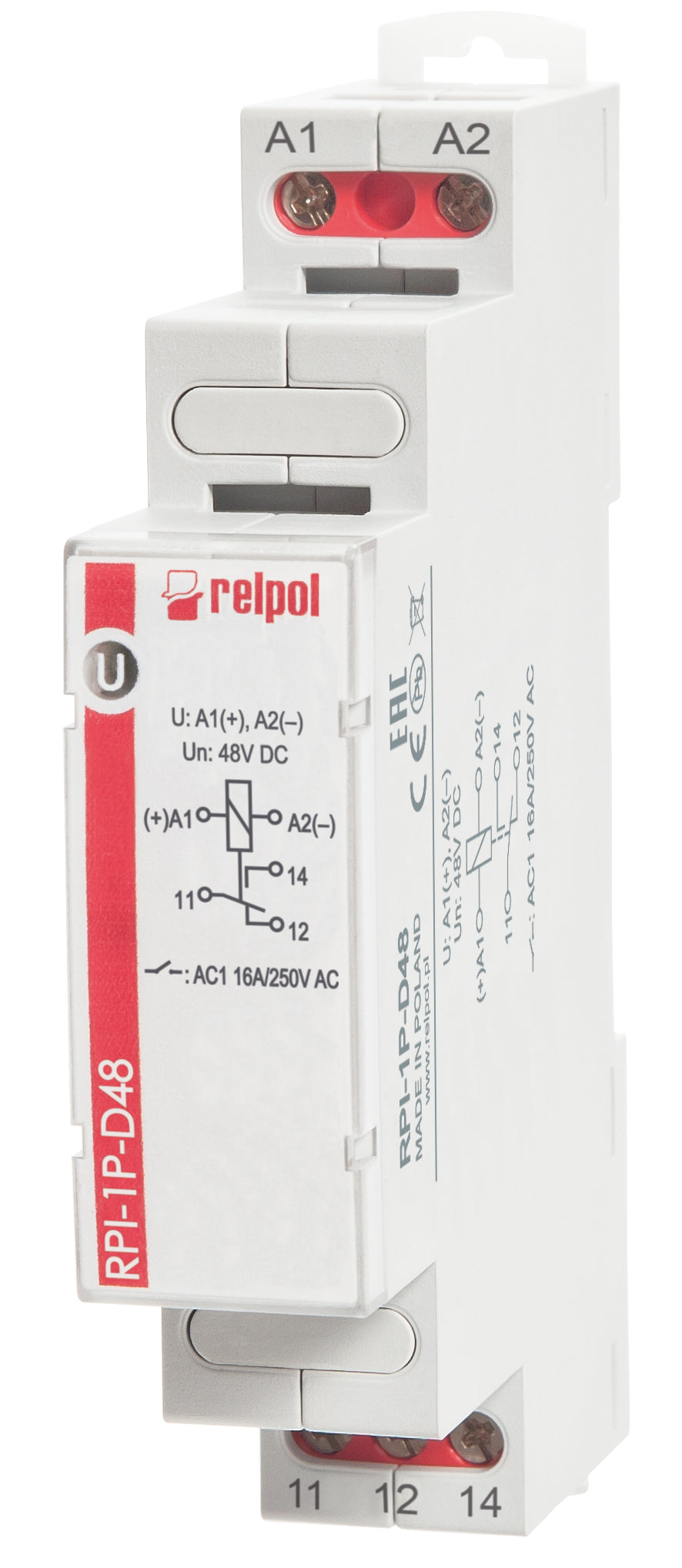

Modular installation Relays RPI-1P-D48, 1 CO. Contact material: AgSnO2. Voltage coil 48 V DC. Rated load AC1 16 A / 250 V AC, mounting on 35 mm rail. Cover protection category IP 20.

Technical specifications

Type of coil supply	DC
Coil voltage	48 V
Contact material	AgSnO2
Number and type of contacts	1 CO
Rated load AC1	16 A / 250 V AC
Rated load DC1	16 A / 24 V DC
Rated switching voltage	300 V AC
Mounting	mounting on 35 mm rail
Depth	90
Width mm	17,5
Height mm	64,6
Weight kg	0,06
ETIM class	EC001652
Relay type	RPI
Ip cover	IP 20
