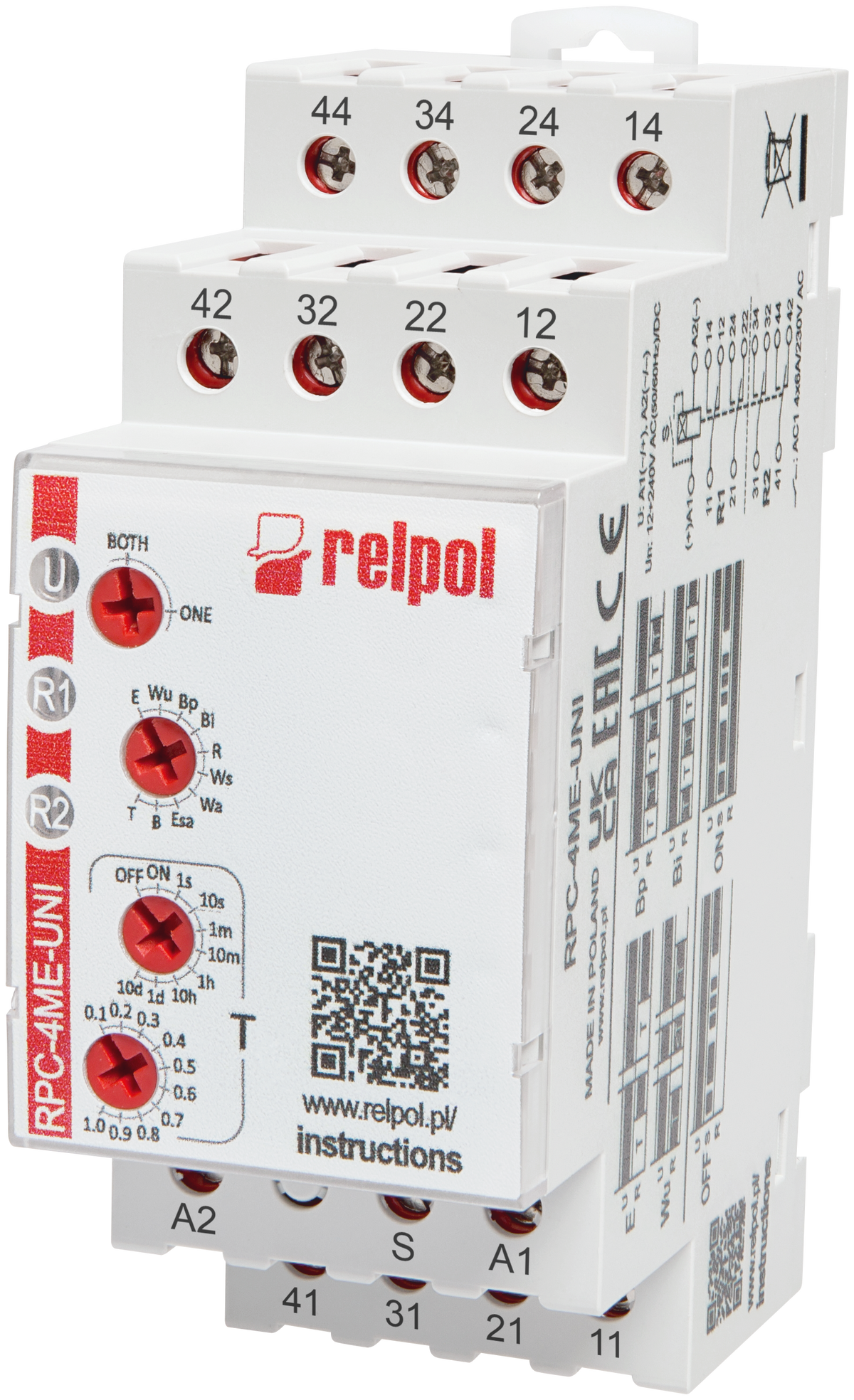

Relpol RPC-4ME-UNI – Time Relays

Name: Relpol RPC-4ME-UNI – Time Relays
Brand: Relpol
SKU: RPC-4ME-UNI
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

Time relay RPC-4ME-UNI, multifunction (relay perform 10 functions), cover - modular, width 35 mm, four changeover contacts, contact material AgSnO2, rated input voltage 12...240 V AC/DC AC: 50/60 Hz

Technical specifications

Type of coil supply	AC/DC
Coil voltage	12...240 V
Contact material	AgSnO2
Number and type of contacts	2 x 2 CO
Rated load AC1	6 A / 230 V AC
Mounting	mounting on 35 mm rail
Depth	90
Width mm	35
Height mm	64
Weight kg	0,116
ETIM class	EC001439
Relay type	RPC
Ip cover	IP 20
Time ranges	1 s; 10 s; 1 min.; 10 min.; 1 h; 10 h; 1 d; 10 d
