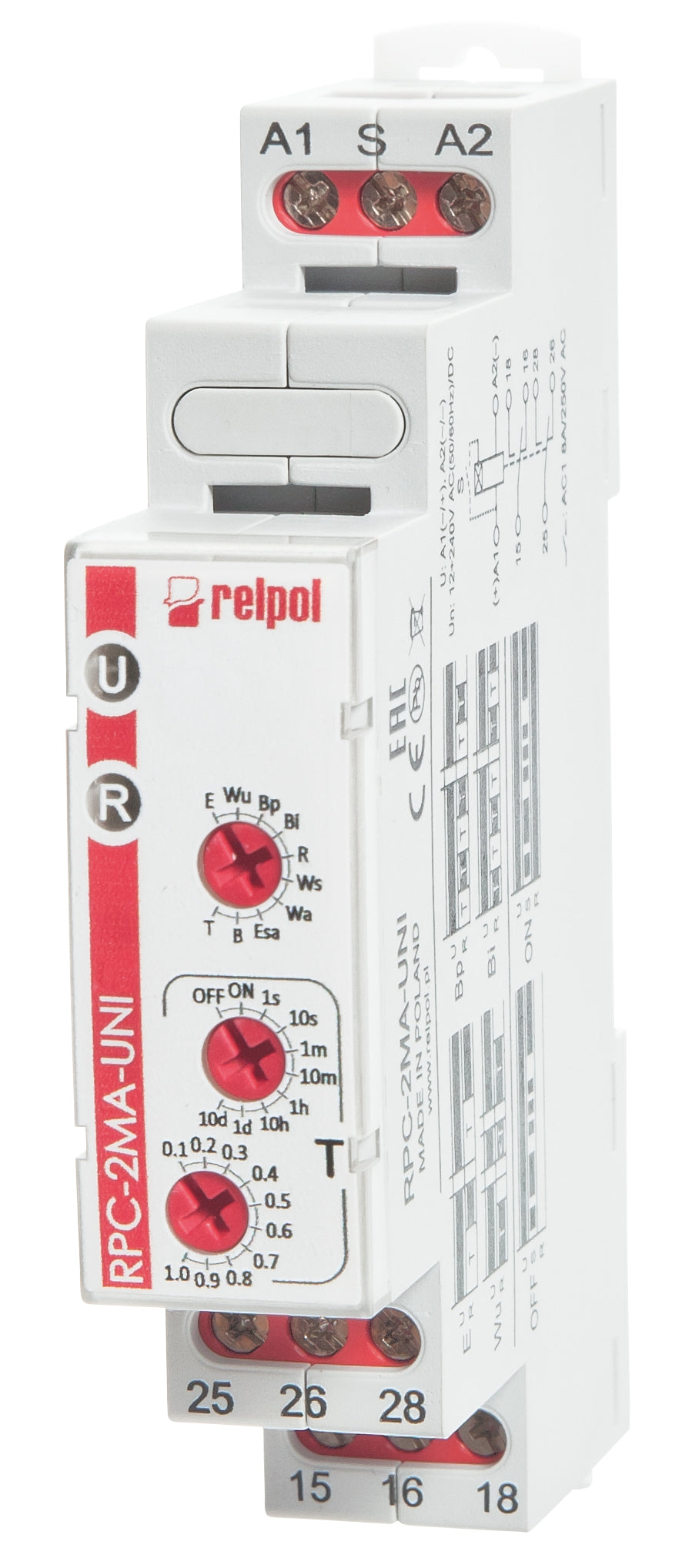

Relpol RPC-2MA-UNI – Time Relays

Name: Relpol RPC-2MA-UNI – Time Relays
Brand: Relpol
SKU: RPC-2MA-UNI
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

Multifunction time relays - 10 time functions E, Wu, Bp, Bi, R, Ws, Wa Esa, B, T. 8 time ranges. Cadmium - free contacts 2 CO. Rated input voltage UNI 12...240VAC/DC 50/60 Hz

Technical specifications

Type of coil supply	AC/DC
Coil voltage	12...240 V
Contact material	AgSnO2
Number and type of contacts	2 CO
Rated load AC1	8 A / 250 V AC
Rated load DC1	8 A / 24 V DC
Mounting	mounting on 35 mm rail
Depth	90
Width mm	17,5
Height mm	64,5
Weight kg	0,073
ETIM class	EC001439
Relay type	RPC
Ip cover	IP 20
Time ranges	1 s; 10 s; 1 min.; 10 min.; 1 h; 10 h; 1 d; 10 d
