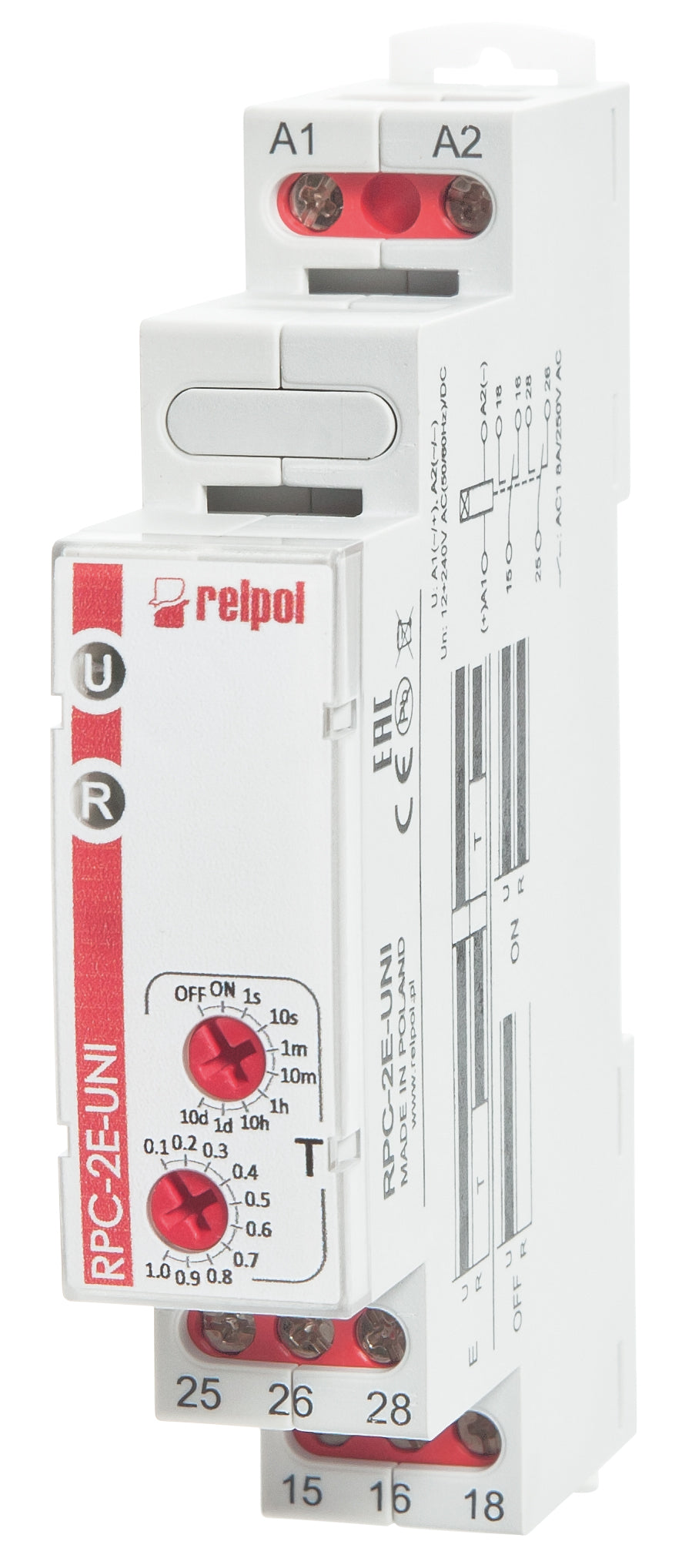

Relpol RPC-2E-UNI – Time Relays
Relpol RPC-2E-UNI – Time Relays
Price on request
Dostava se obračuna ob zaključku nakupa.
Single-function time relay, function E - ON delay. 8 time ranges. Cadmium - free contacts 2 CO. Rated input voltage UNI 12...240VAC/DC 50/60 Hz
Technical specifications
| Type of coil supply | AC/DC |
|---|---|
| Coil voltage | 12...240 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 2 CO |
| Rated load AC1 | 8 A / 250 V AC |
| Rated load DC1 | 8 A / 24 V DC |
| Mounting | mounting on 35 mm rail |
| Depth | 90 |
| Width mm | 17,5 |
| Height mm | 64,5 |
| Weight kg | 0,071 |
| ETIM class | EC001439 |
| Relay type | RPC |
| Ip cover | IP 20 |
| Time ranges | 1 s; 10 s; 1 min.; 10 min.; 1 h; 10 h; 1 d; 10 d |
