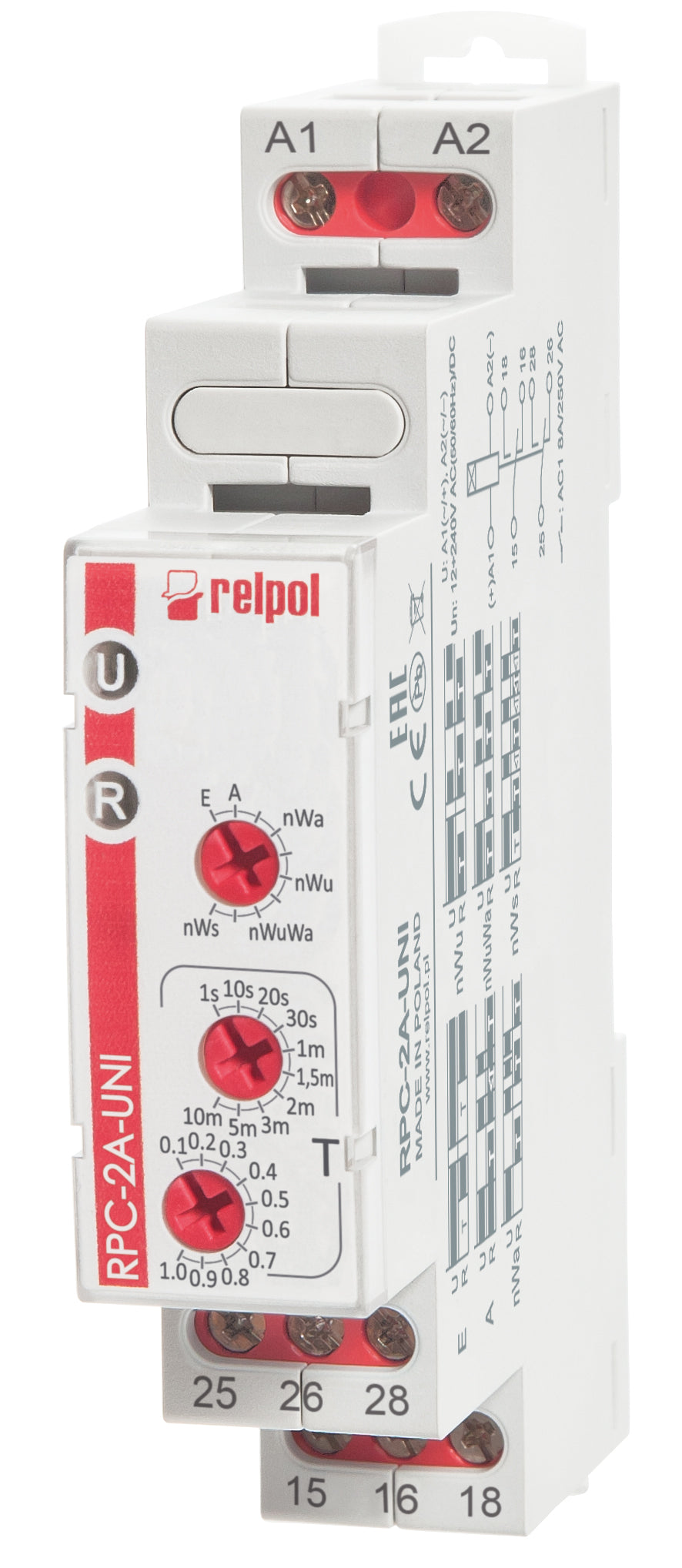

Relpol RPC-2A-UNI – Time Relays

Name: Relpol RPC-2A-UNI – Time Relays
Brand: Relpol
SKU: RPC-2A-UNI
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

Multifunction (relay perform 6 functions), cover - modular, width 17,5 mm, two changeover contacts, contact material AgSnO2, rated input voltage 12...240 V AC/DC AC: 50/60 Hz

Technical specifications

Type of coil supply	AC/DC
Coil voltage	12...240 V
Contact material	AgSnO2
Number and type of contacts	2 CO
Rated load AC1	8 A / 250 V AC
Rated load DC1	8 A / 24 V DC
Mounting	mounting on 35 mm rail
Depth	90
Width mm	17,5
Height mm	64,5
Weight kg	0,072
ETIM class	EC001439
Relay type	RPC
Ip cover	IP 20
Time ranges	1 s; 10 s; 20 s; 30 s; 1 min.; 1,5 min.; 2 min.; 3 min.; 5 min.; 10 min.
