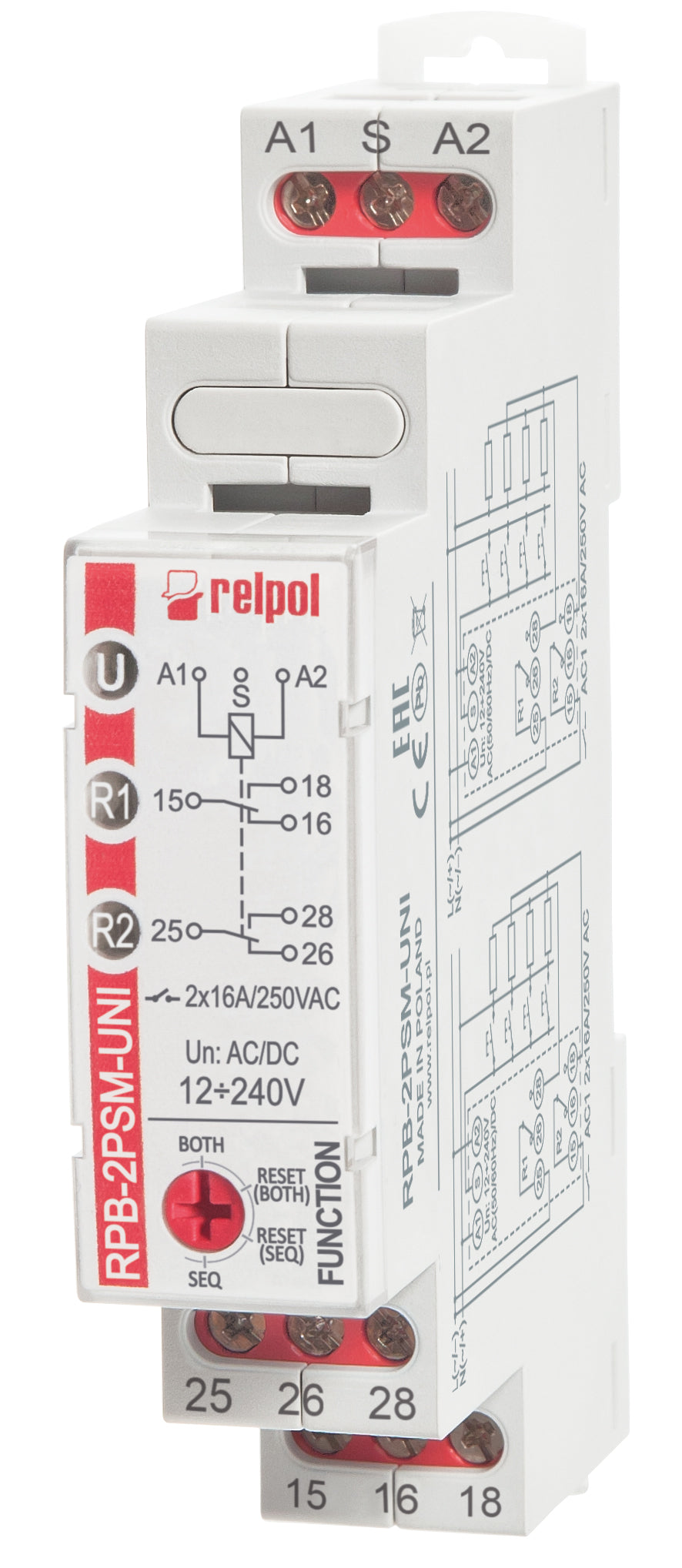

Relpol RPB-2PSM-UNI – Industrial Relays

Name: Relpol RPB-2PSM-UNI – Industrial Relays
Brand: Relpol
SKU: RPB-2PSM-UNI
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

Bistable - impulse relay sequential with memory, 2 CO, universal control voltage 12...240 V AC/DC. Cooperation with momentary (bell) switches or control buttons.

Technical specifications

Type of coil supply	AC/DC
Coil voltage	12...240 V
Contact material	AgSnO2
Number and type of contacts	2 CO
Rated load AC1	16 A / 250 V AC
Rated load DC1	16 A / 24 V DC
Rated switching voltage	300 V AC
Mounting	mounting on 35 mm rail
Depth	90
Width mm	17,5
Height mm	64,6
Weight kg	0,083
ETIM class	EC000188
Relay type	RPB
Ip cover	IP 20
