Relpol
SKU:RPB-1P-U24

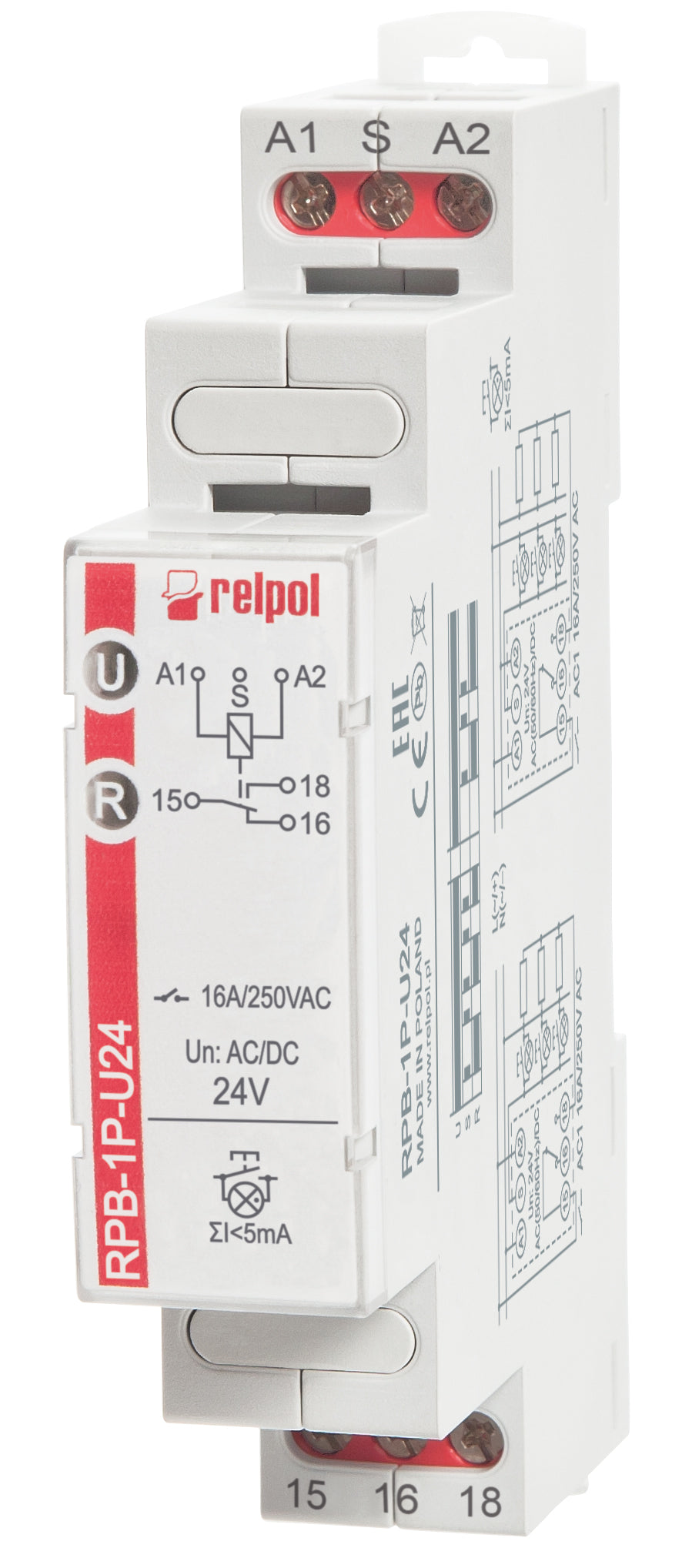

Relpol RPB-1P-U24 – Industrial Relays
Relpol RPB-1P-U24 – Industrial Relays
Price on request
Shipping calculated at checkout.
Bistable - impulse relay without memory, 1 CO, control voltage: 24 V AC/DC. Cooperation with illuminated momentary bell switches and control buttons.
Technical specifications
| Type of coil supply | AC/DC |
|---|---|
| Coil voltage | 24 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 1 CO |
| Rated load AC1 | 16 A / 250 V AC |
| Rated load DC1 | 16 A / 24 V DC |
| Rated switching voltage | 300 V AC |
| Mounting | mounting on 35 mm rail |
| Depth | 90 |
| Width mm | 17,5 |
| Height mm | 64,6 |
| Weight kg | 0,065 |
| ETIM class | EC000188 |
| Relay type | RPB |
| Ip cover | IP 20 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
