Relpol
Inventarna številka:RMP7-2011-23-5024

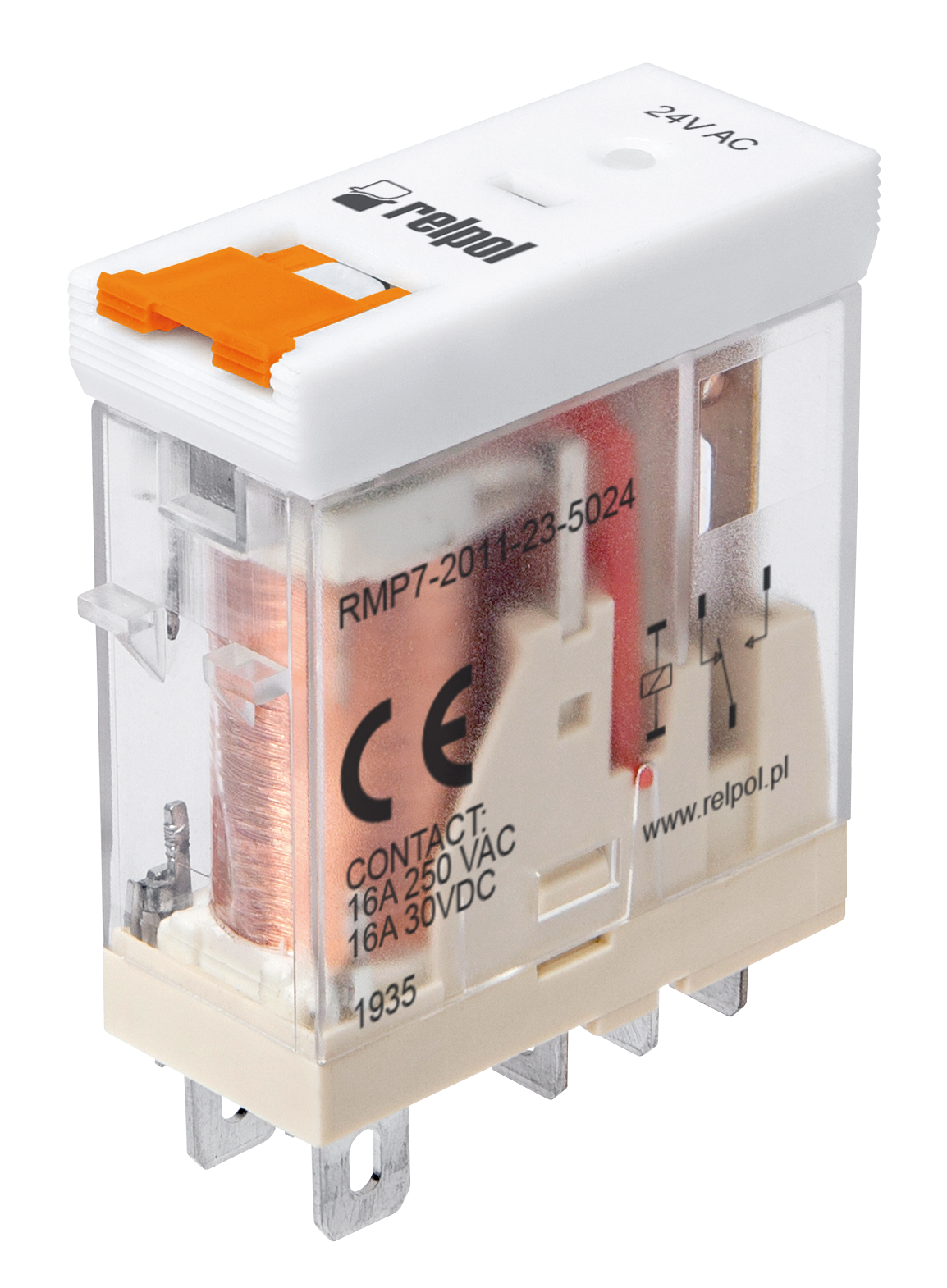

Relpol RMP7-2011-23-5024 – Industrial Relays
Relpol RMP7-2011-23-5024 – Industrial Relays
Price on request
Dostava se obračuna ob zaključku nakupa.
Miniature relays 1 CO. Contact material: AgNi. Voltage coil 24 V AC . Mounting: for plug-in sockets.
Technical specifications
| Type of coil supply | AC |
|---|---|
| Coil voltage | 24 V |
| Contact material | AgNi |
| Number and type of contacts | 1 CO (faston 4,7 x 0,5 mm) |
| Rated load AC1 | 16 A / 250 V AC |
| Rated load DC1 | 16 A / 30 V DC |
| Mounting | for plug-in sockets |
| Depth | 30,6 |
| Width mm | 12,6 |
| Height mm | 32,3 |
| Weight kg | 0,02 |
| ETIM class | EC001437 |
| Relay type | RMP7 |
| Ip cover | IP 00 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
