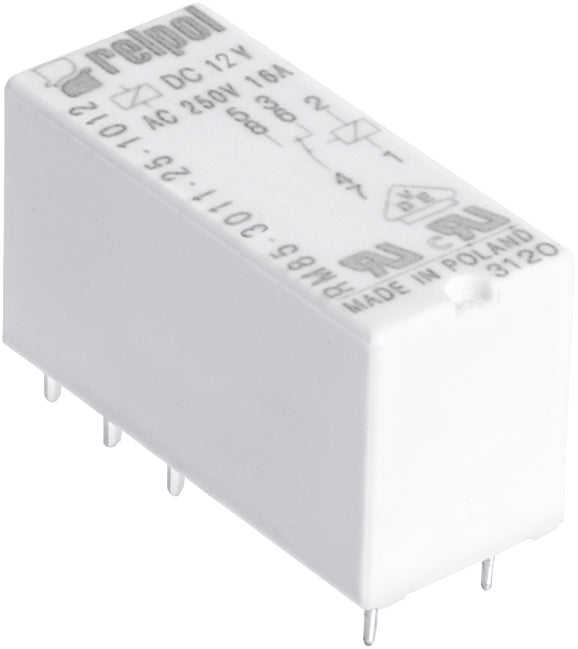

Relpol RM85-3021-35-1012 – Industrial Relays

Name: Relpol RM85-3021-35-1012 – Industrial Relays
Brand: Relpol
SKU: RM85-3021-35-1012
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

Miniature relays RM85-3021-35-1012, 1 NO. Contact material: AgSnO2. Voltage coil 12 V DC. Rated load AC1 16 A / 250 V AC. Mounting: for PCB and sockets. Cover protection category IP 67.

Technical specifications

Type of coil supply	DC
Coil voltage	12 V
Contact material	AgSnO2
Number and type of contacts	1 NO
Rated load AC1	16 A / 250 V AC
Rated load AC3	0,5 kW
Rated load DC1	16 A / 24 V DC
Rated switching voltage	250 V AC
Mounting	for PCB and sockets
Depth	29
Width mm	12,7
Height mm	15,7
Weight kg	0,014
ETIM class	EC001437
Relay type	RM85
Ip cover	IP 67
