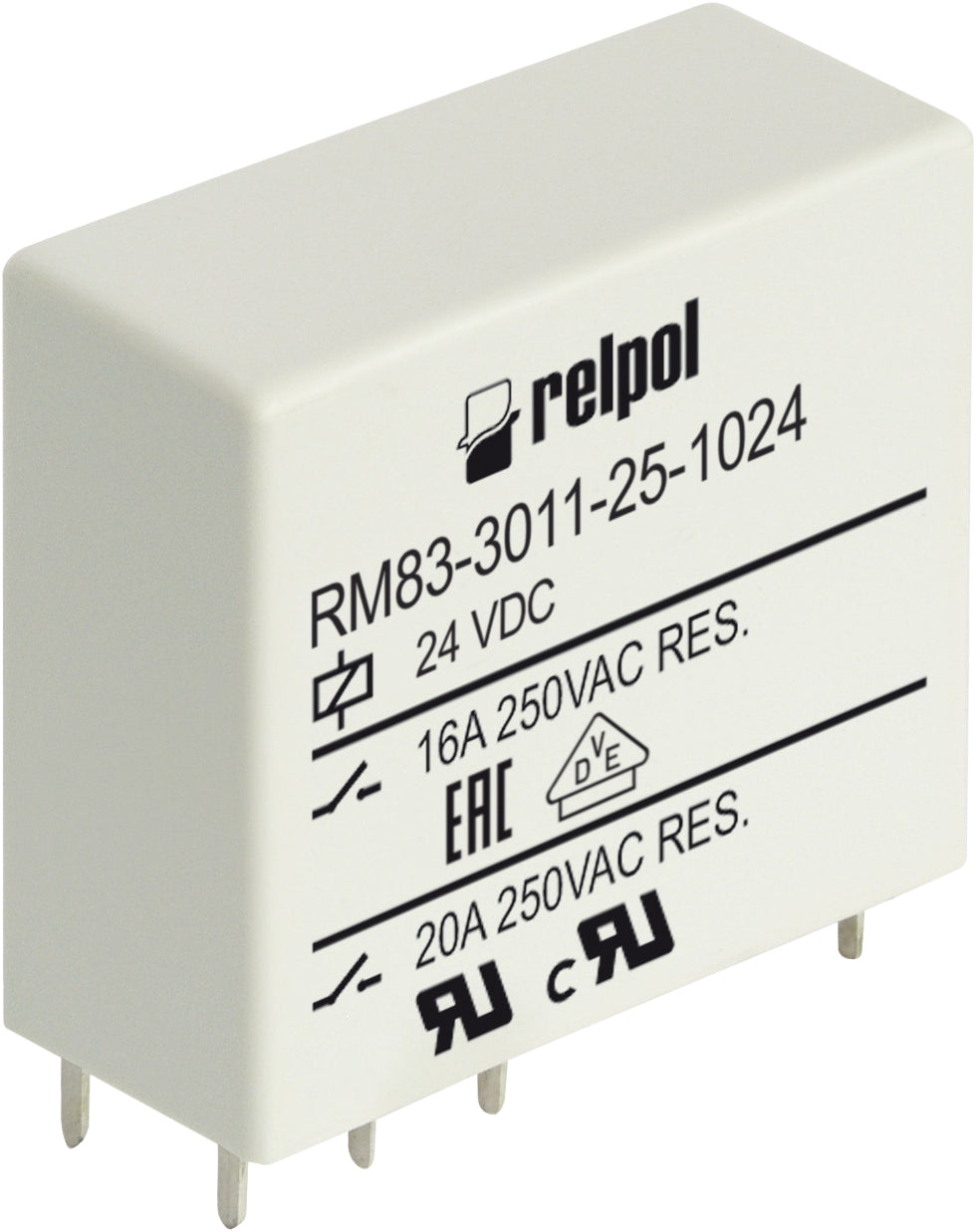

Relpol RM83-3011-35-1024 – Industrial Relays

Name: Relpol RM83-3011-35-1024 – Industrial Relays
Brand: Relpol
SKU: RM83-3011-35-1024
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

Miniature relays, 1 CO, AgSnO2,, 24V DC, Rated load AC1 16 A, Rated switching voltage 250 V AC, Operating temperature °C -40…+70, for PCB and sockets. IP67

Technical specifications

Type of coil supply	DC
Coil voltage	24 V
Contact material	AgSnO2
Number and type of contacts	1 CO
Rated load AC1	16 A / 250 V AC
Rated load AC3	0,65 kW
Rated load DC1	16 A / 24 V DC
Rated switching voltage	250 V AC
Mounting	for PCB and sockets
Depth	29,2
Width mm	13,1
Height mm	25,1
Weight kg	0,018
ETIM class	EC001437
Relay type	RM83
Ip cover	IP 40
