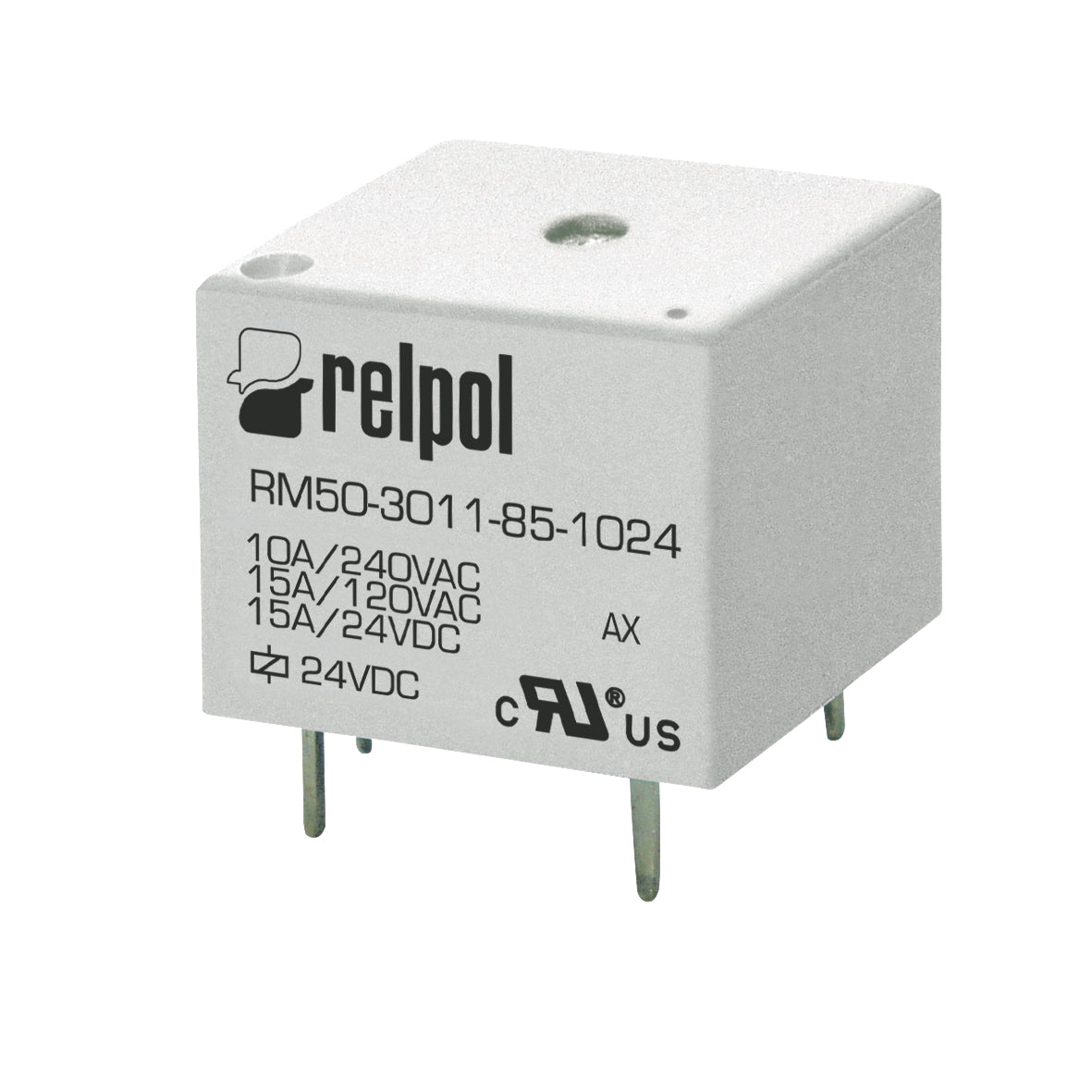

Relpol RM50-3011-85-1048 – Industrial Relays
Relpol RM50-3011-85-1048 – Industrial Relays
Price on request
Dostava se obračuna ob zaključku nakupa.
Relpol RM50-3011-85-1048. Industrial Relays.
Technical specifications
| Type of coil supply | DC |
|---|---|
| Coil voltage | 48 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 1 CO |
| Rated load AC1 | 10 A / 240 V AC |
| Rated load DC1 | 15 A / 24 V DC |
| Rated switching voltage | 240 V AC |
| Connection | PCB mounting |
| Depth (mm) | 19 |
| Width (mm) | 15,4 |
| Height (mm) | 15,5 |
| Weight (kg) | 0,011 |
| ETIM class | EC001437 |
| Version | niestandardowe |
| Relay type | RM50 |
| Enclosure protection | IP 67 |
