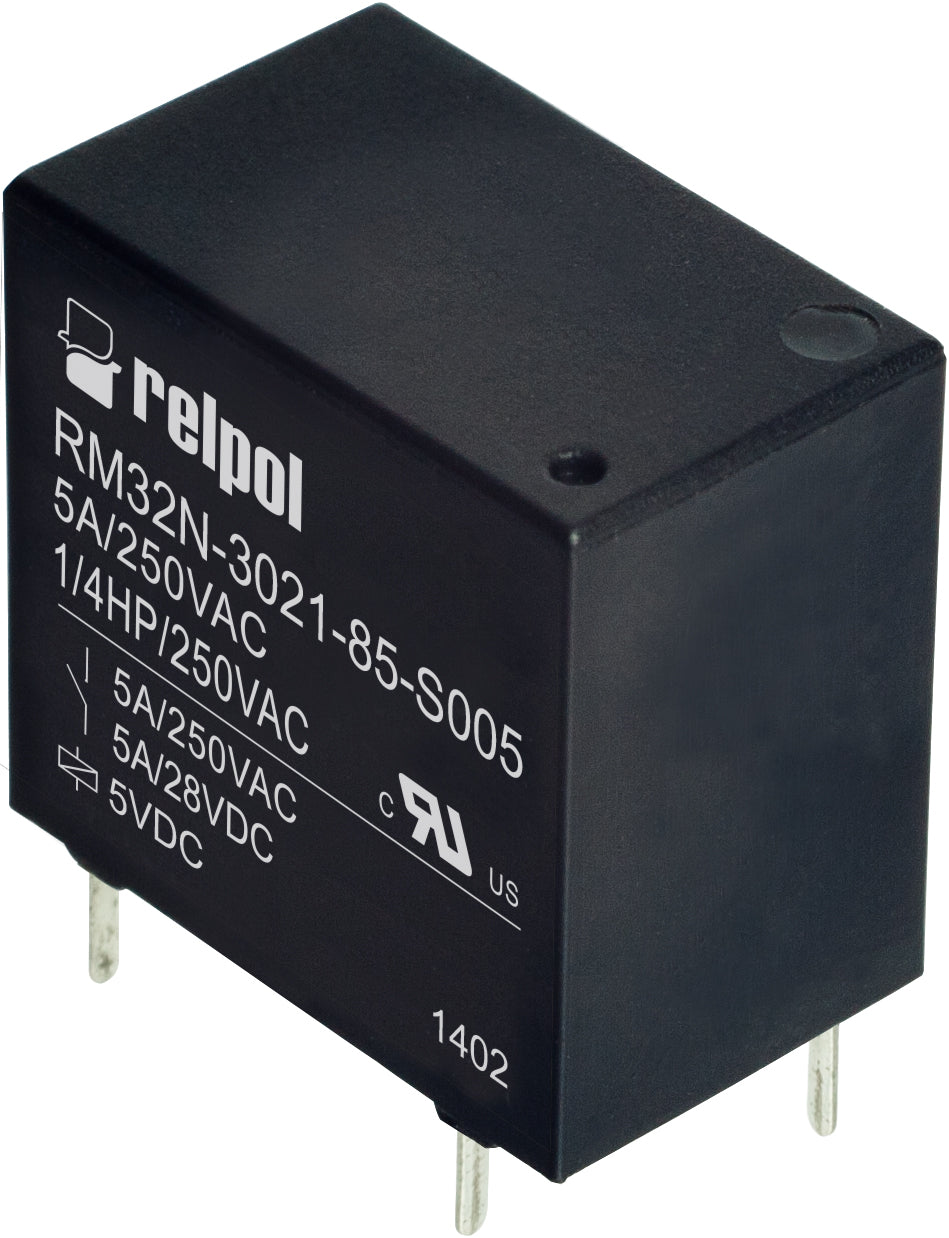

Relpol RM32N-3021-85-S005 – Industrial Relays
Relpol RM32N-3021-85-S005 – Industrial Relays
Price on request
Shipping calculated at checkout.
Miniature relays RM32N-3021-85-S005, 1 NO. Contact material: AgSnO2. Voltage coil 5 V DC sensitive coil. Rated load AC1 5 A / 250 V AC. Mounting: for PCB. Cover protection category IP 67.
Technical specifications
| Type of coil supply | DC sensitive coil |
|---|---|
| Coil voltage | 5 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 1 NO |
| Rated load AC1 | 5 A / 250 V AC |
| Rated load DC1 | 5 A / 28 V DC |
| Rated switching voltage | 250 V AC |
| Mounting | for PCB |
| Depth | 18,8 |
| Width mm | 10,6 |
| Height mm | 15,3 |
| Weight kg | 0,006 |
| ETIM class | EC001437 |
| Relay type | RM32N |
| Ip cover | IP 67 |
