Relpol RM18B-3021-35-1012 – Industrial Relays

Name: Relpol RM18B-3021-35-1012 – Industrial Relays
Brand: Relpol
SKU: RM18B-3021-35-1012
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

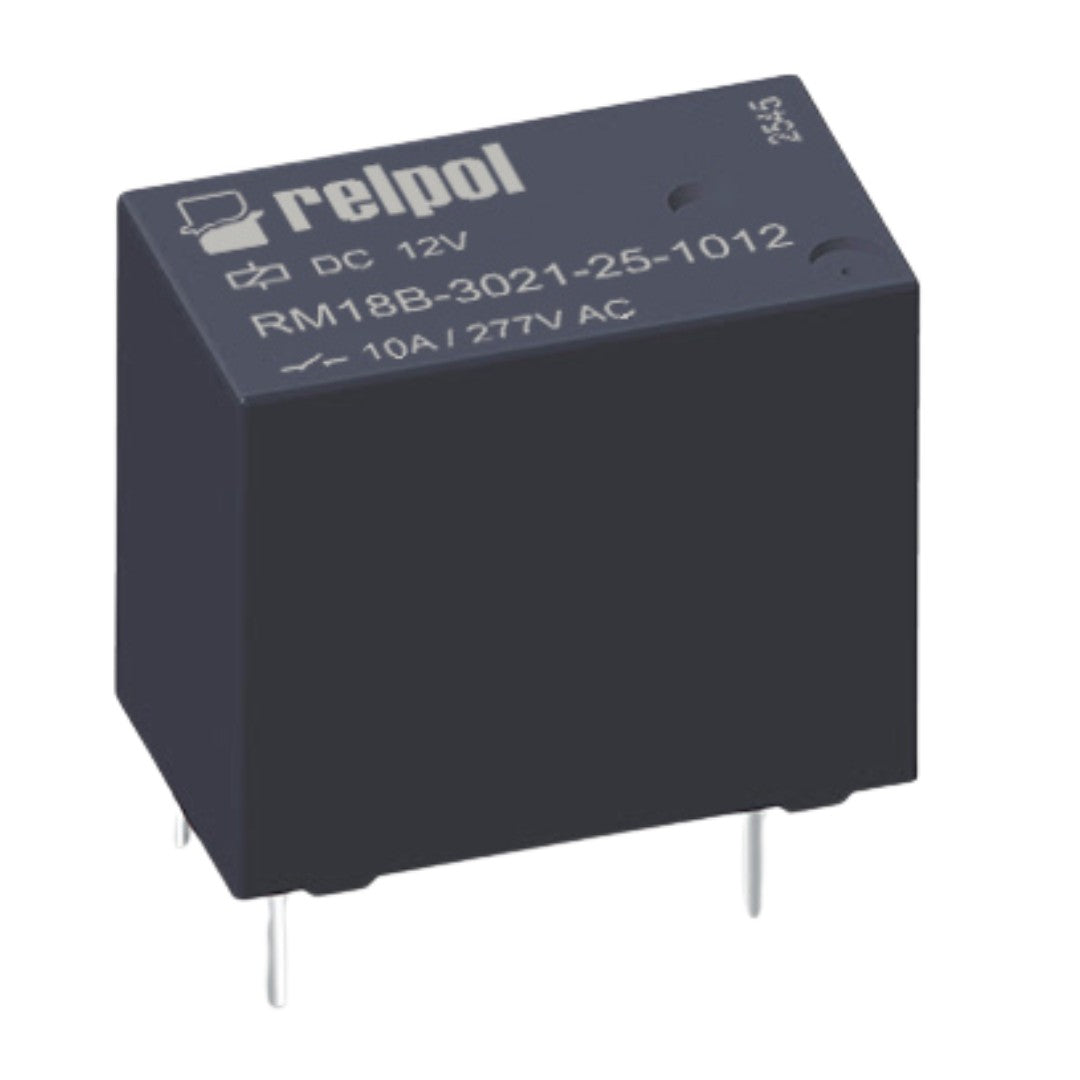

Miniature electromagnetic relay for PCB mounting. Height: 15.5 mm. Contact configuration: 1Z – 1 NO contact; AC1 - 10 A / 250 V; Rated coil voltage (Un): 12 V DC. Dimensions: 18,2 x 10,2 x 15,5 mm. IP 67. Contact material: AgSnO2.

Technical specifications

Type of coil supply	DC
Coil voltage	12 V
Contact material	AgSnO2
Number and type of contacts	1 NO
Rated load AC1	10 A / 250 V AC
Rated switching voltage	250 V AC
Mounting	for PCB
Depth	18,2
Width mm	10,2
Height mm	15,5
Weight kg	0,0057
ETIM class	EC001437
Relay type	Miniature relays
Ip cover	IP 67
