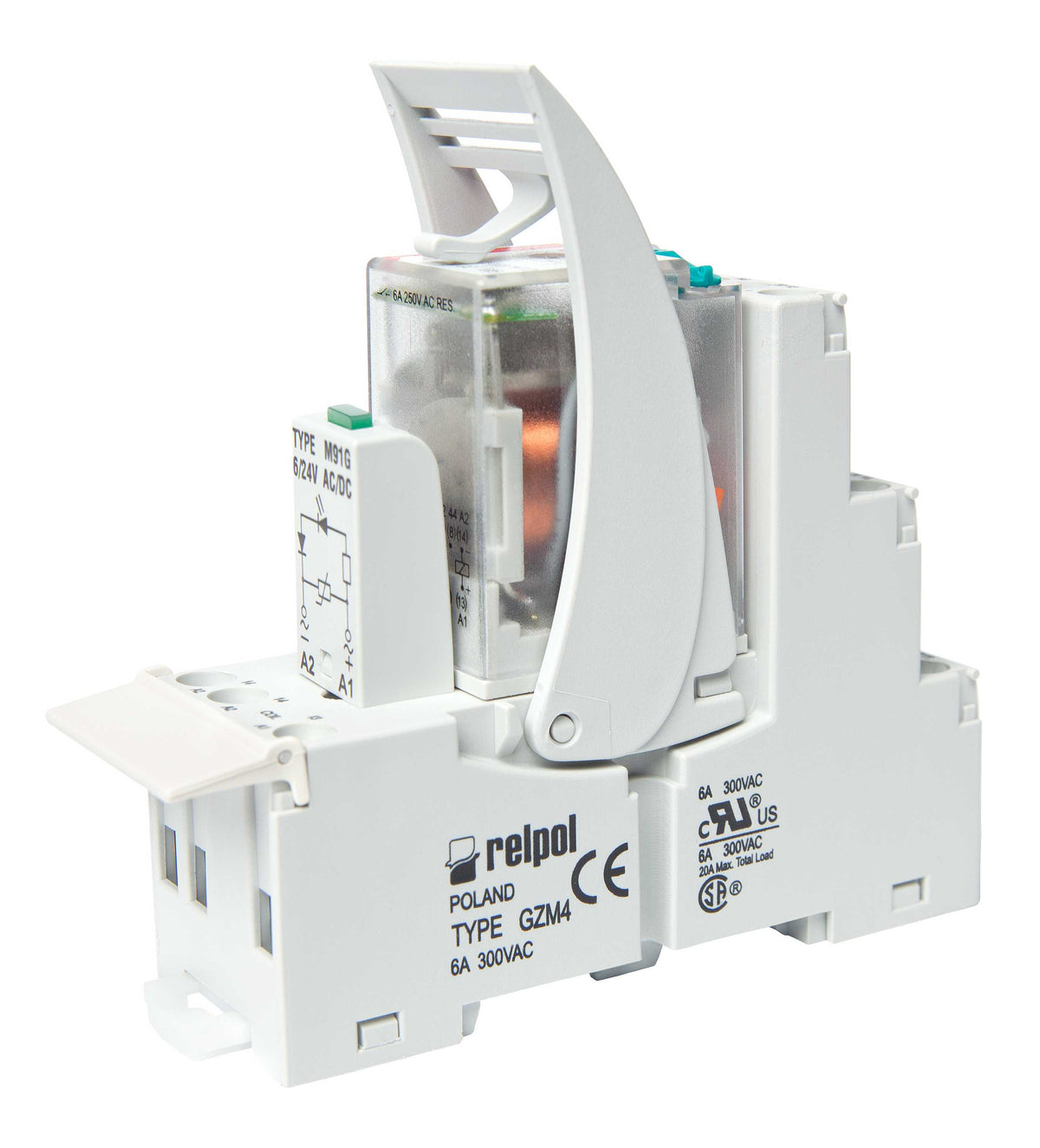

Relpol PIR4-048AC-00LV – Interface Relays

Name: Relpol PIR4-048AC-00LV – Interface Relays
Brand: Relpol
SKU: PIR4-048AC-00LV
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

Interface relays PIR4-048AC-00LV, 4 CO. Contact material: AgNi. Voltage coil 48 V AC. Rated load AC1 7 A / 230 V AC. Mounting: mounting on 35 mm rail. Cover protection category IP 20.

Technical specifications

Type of coil supply	AC
Coil voltage	48 V
Contact material	AgNi
Number and type of contacts	4 CO
Rated load AC1	7 A / 230 V AC
Rated load AC3	0,125 kW
Rated load DC1	6 A / 24 V DC
Rated switching voltage	250 V AC
Mounting	mounting on 35 mm rail
Depth	75
Width mm	27
Height mm	82
Weight kg	0,108
ETIM class	EC001437
Execution	niestandardowe
Relay type	PIR4
Ip cover	IP 20
