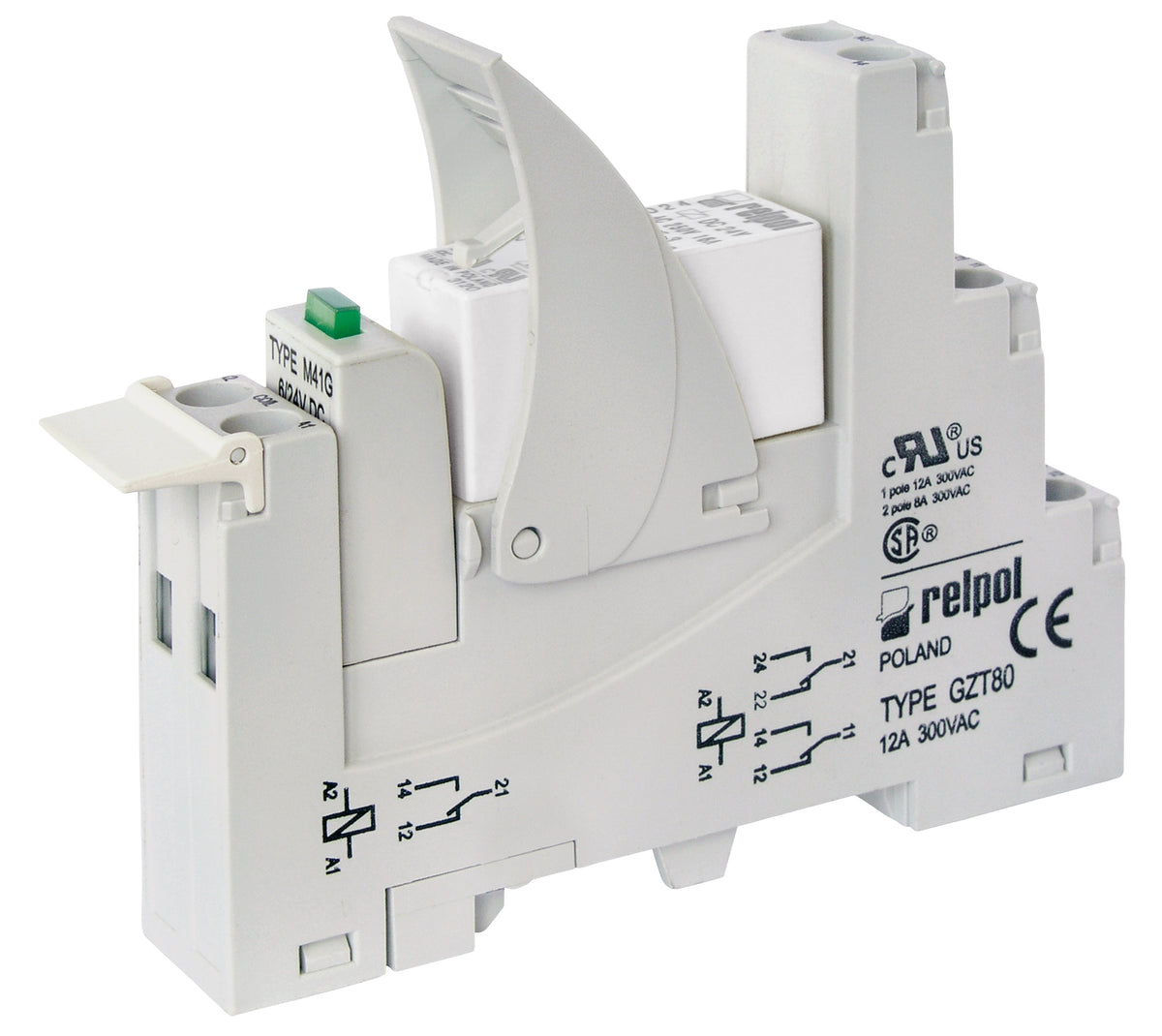

Relpol PI85-012DC-M41G-TS-2311 – Interface Relays

Name: Relpol PI85-012DC-M41G-TS-2311 – Interface Relays
Brand: Relpol
SKU: PI85-012DC-M41G-TS-2311
Availability: InStock

Price on request

Sold out

Shipping calculated at checkout.

Request a price

Interface relays PI85-012DC-M41G-TS-2311, 1 CO. Contact material: AgNi/Au hard gold plating. Voltage coil 12 V DC. Rated load AC1 16 A / 250 V AC. Mounting: mounting on 35 mm rail. Cover protection category IP 20.

Technical specifications

Type of coil supply	DC
Coil voltage	12 V
Contact material	AgNi/Au hard gold plating
Number and type of contacts	1 CO
Rated load AC1	16 A / 250 V AC
Rated load AC3	0,5 kW
Rated load DC1	16 A / 24 V DC
Rated switching voltage	250 V AC
Mounting	mounting on 35 mm rail
Depth	80
Width mm	15,6
Height mm	67
Weight kg	0,061
ETIM class	EC001437
Relay type	PI85
Ip cover	IP 20
