Relpol
SKU:PI72P-024DC-Y42G-RS-2012
Relpol PI72P-024DC-Y42G-RS-2012 – Interface Relays
Relpol PI72P-024DC-Y42G-RS-2012 – Interface Relays
Price on request
Shipping calculated at checkout.

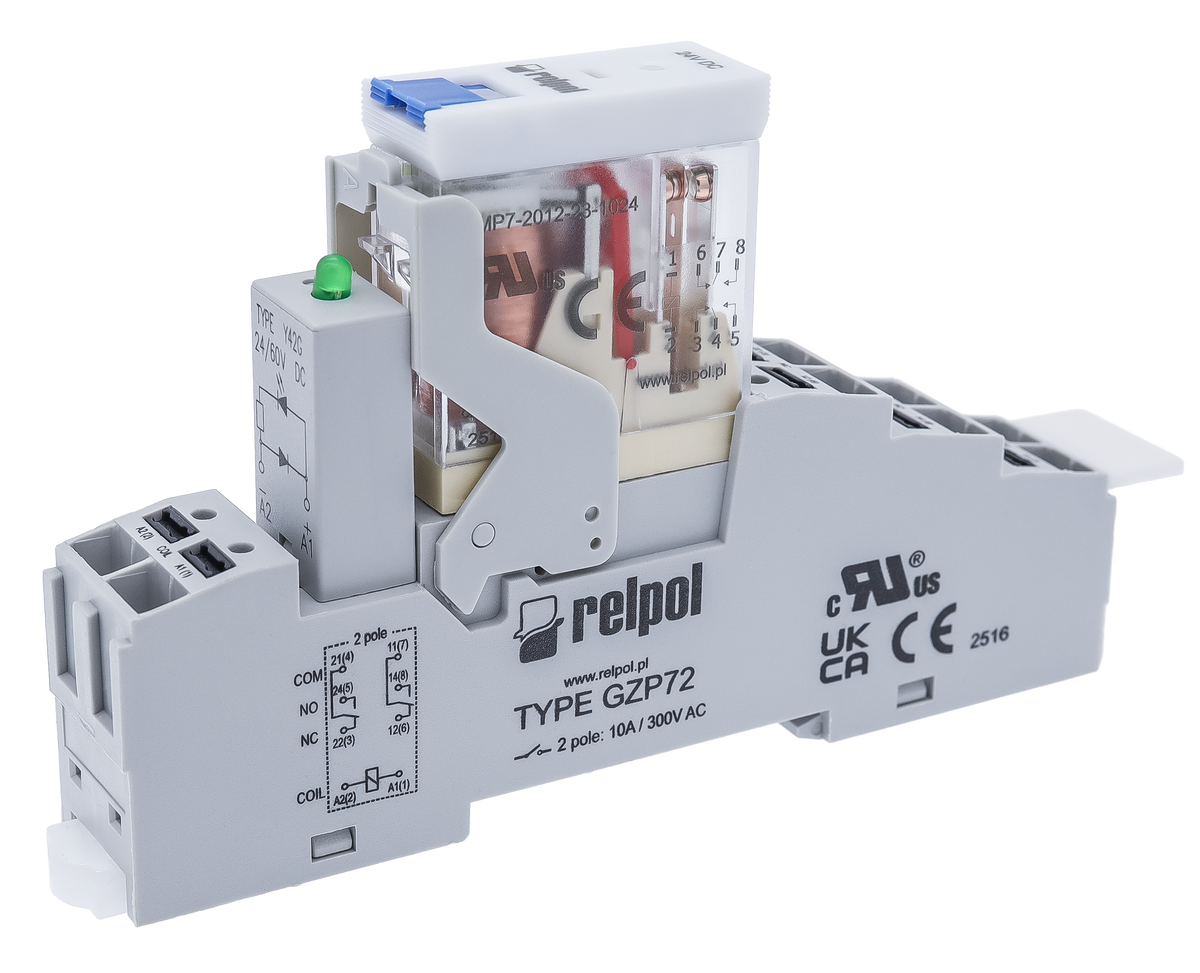

Push-in interface relay set: relay RMP7 (contacts 2 CO, AgNi, coil voltage 24 V DC), socket GZP72, module Y42G
Technical specifications
| Type of coil supply | DC |
|---|---|
| Coil voltage | 24 V |
| Contact material | AgNi |
| Number and type of contacts | 2 CO |
| Rated load AC1 | 8 A / 250 V AC |
| Rated load DC1 | 8 A / 30 V DC |
| Mounting | mounting on 35 mm rail |
| Depth | 99,8 |
| Width mm | 16,1 |
| Height mm | 61,4 |
| Weight kg | 0,065 |
| ETIM class | EC001437 |
| Relay type | PI72P |
| Ip cover | IP 20 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
