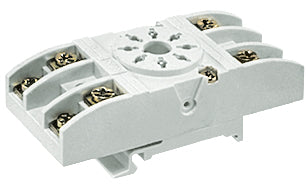

Relpol GZU8 – Relay Sockets & Bases

Plug-in socket, for R15 2P relay (socket version) - gray color, width 35.5 mm. No circuit separation. Input / coil - terminals: (+)A1(2) - (-)A2(7). Output / contacts - terminals: 11(1)-12(4)-14(3); 21(8)-22(5)-24(6). Track load capacity: 10 A / 300 V AC. Dimensions: 82 x 35.5 x 25.7 mm. Mounting on a 35 mm rail. Set dimensions: GZU8 socket + R15 2P relay + GZU 1052 clamp: 82 x 35.5 x 84.1 mm. Note: the GZU 1052 spring clamp must be ordered separately for the socket (it increases the height of the socket + relay set by approximately 4 mm). Set - IP 20.

Technical specifications
