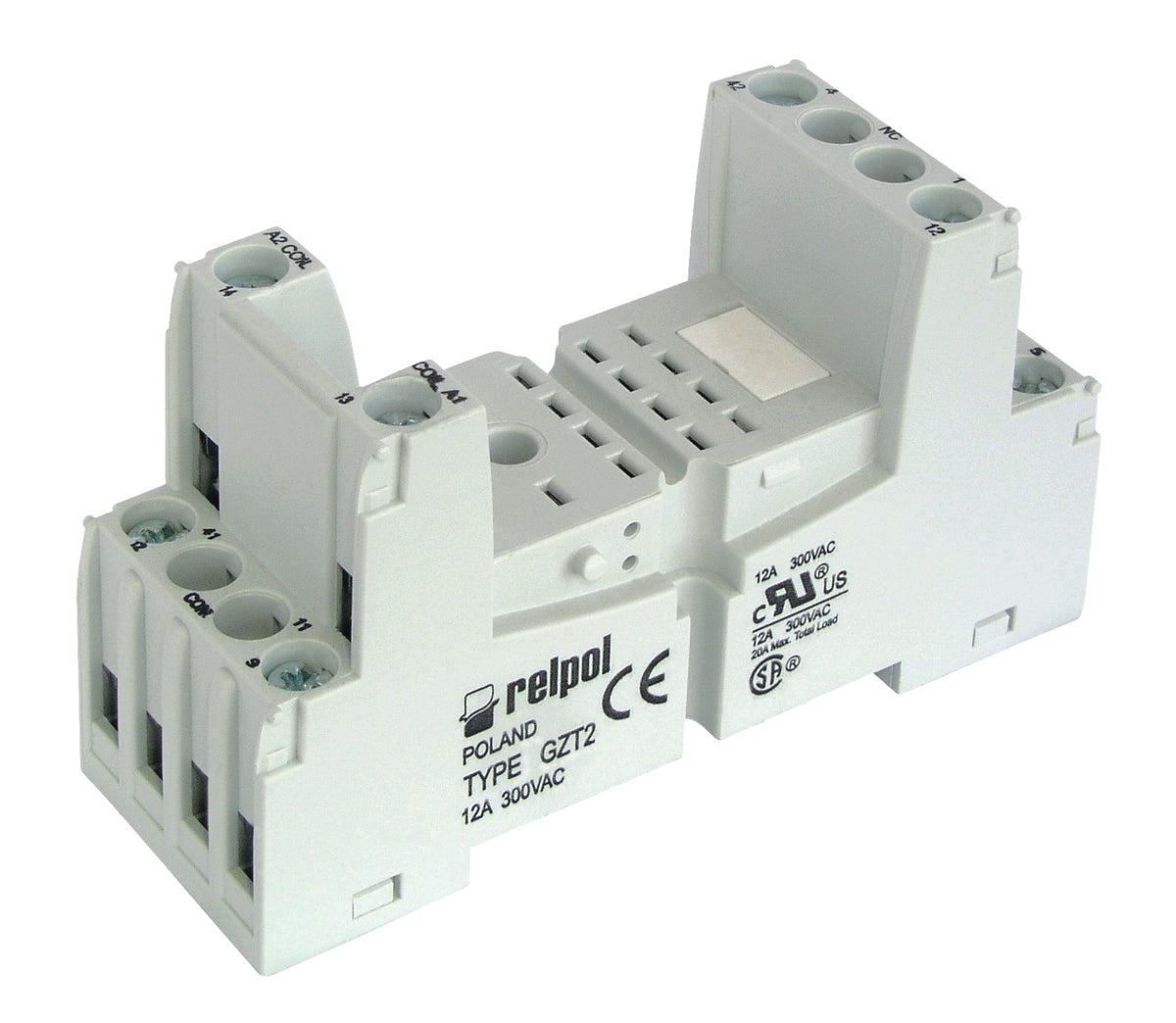

Relpol GZT2 – Relay Sockets & Bases

Plug socket, for R2N relay - width 27 mm. No circuit separation. Input / coil - terminals: (+)A1(13) - (-)A2(14). Output / contacts - terminals: 11(9)-12(1)-14(5); 41(12)-42(4)-44(8). Track load capacity: 6 A / 300 V AC. Mounting on a 35 mm rail or on a mounting plate with two M3 screws. Dimensions of the GZT2 + R2 + GZT4-0040 set: 76.3 x 27 x 80 mm; GZT2 + R2N + G4 1052 set: 76.3 x 27 x 66.6 mm. Note: the GZT4-0040 type clamp must be ordered separately for the socket, the so-called ejector, made of plastic or spring clamp G4 1052. M... type signaling/anti-overvoltage modules can be installed in the socket; Set - IP 20.

Technical specifications
