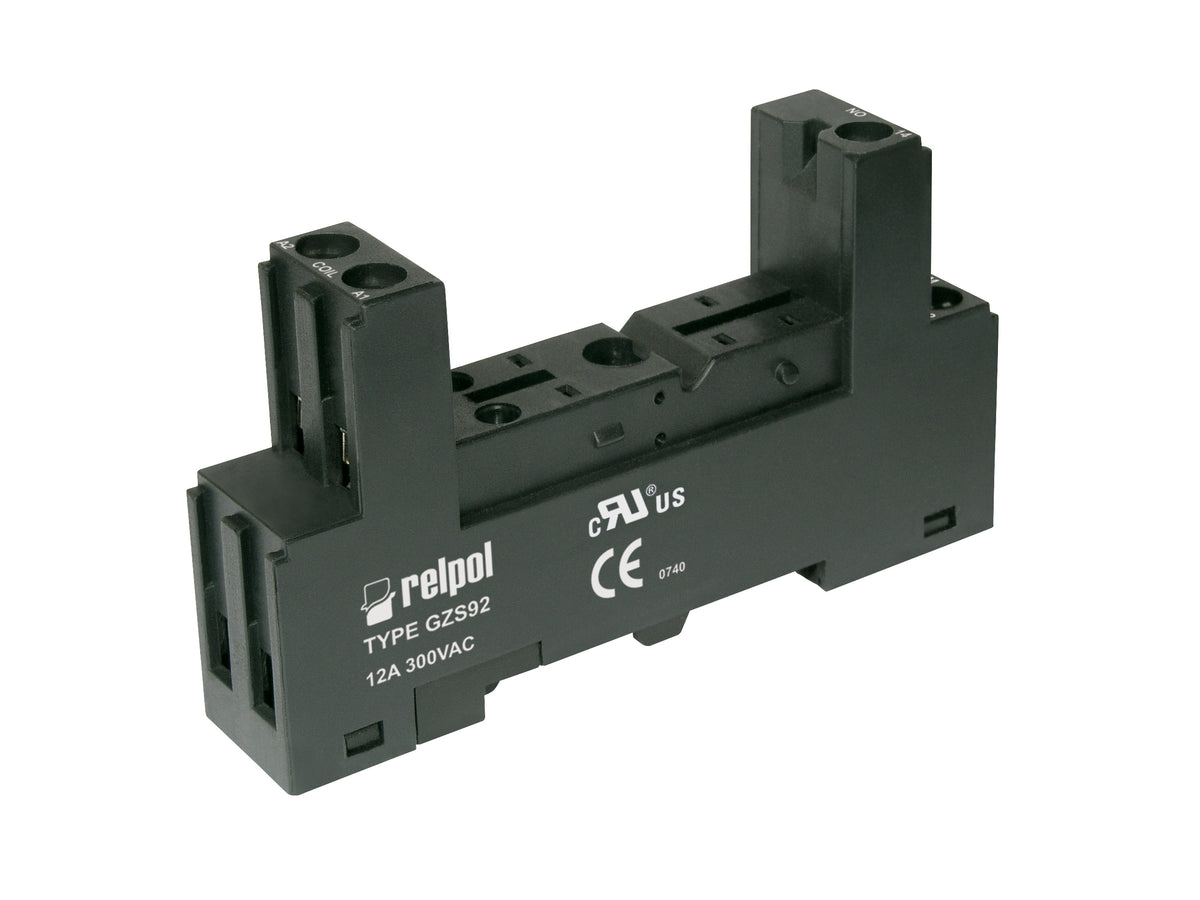

Relpol GZS92 (black) – Relay Sockets & Bases

Plug socket for RM87N, RM87N sensitive, black, width 15.8 mm. Circuit separation - coil terminals on one side and contact terminals on the opposite side of the socket. Input/coil - terminals: A1 - A2. Outputs / contacts - terminals: 11- 12 - 14. Track load capacity: 12 A / 300 V AC. Mounting on a 35 mm rail or on a mounting plate with an M3 screw. Dimensions: 76.4 x 15.8 x 67.4 mm (socket + relay + clamp). Note: the GZS-0040 type clamp must be ordered separately for the socket, the so-called ejector, made of plastic. Signaling/overvoltage protection modules type M... can be installed in the socket (ordered separately according to the Relpol catalogue/price list). IP20. The GZT80-0040 and GZM80-0041 clamp is dedicated to the socket.

Technical specifications
