Relpol
Inventarna številka:GZS80

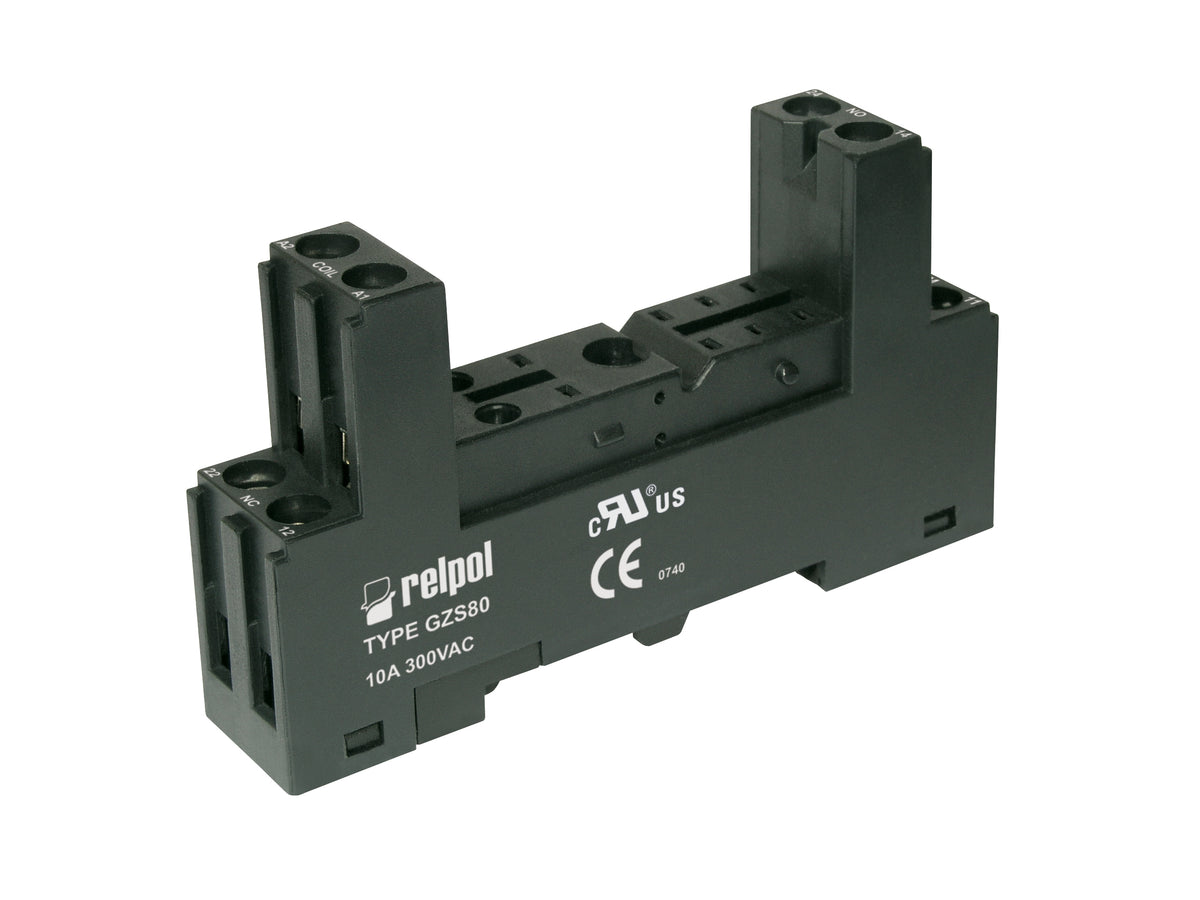

Relpol GZS80 – Relay Sockets & Bases
Relpol GZS80 – Relay Sockets & Bases
Price on request
Dostava se obračuna ob zaključku nakupa.
Plug-in sockets for relays: RM84, RM85, RM85 inrush, RM85 105 °C sensitive, RM87L, RM87L sensitive,RM87P, RM87P sensitive. Screw terminals. Max. tightening moment for the terminal: 0,5 Nm. 35 mm rail mount acc. to PN-EN 60715 or on panel mounting 76,8 x 15,8 x 42,5(57,1) mm. Two poles, 5 mm pinout. Rated load 10 A, 300 V AC.
Technical specifications
| Mounting | Screw terminals |
|---|---|
| Depth | 76,8 |
| Width mm | 15,8 |
| Height mm | 42,5 |
| Weight kg | 0,037 |
| Relay type | Socket GZS80 - screw terminals |
| Ip cover | IP 20 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
