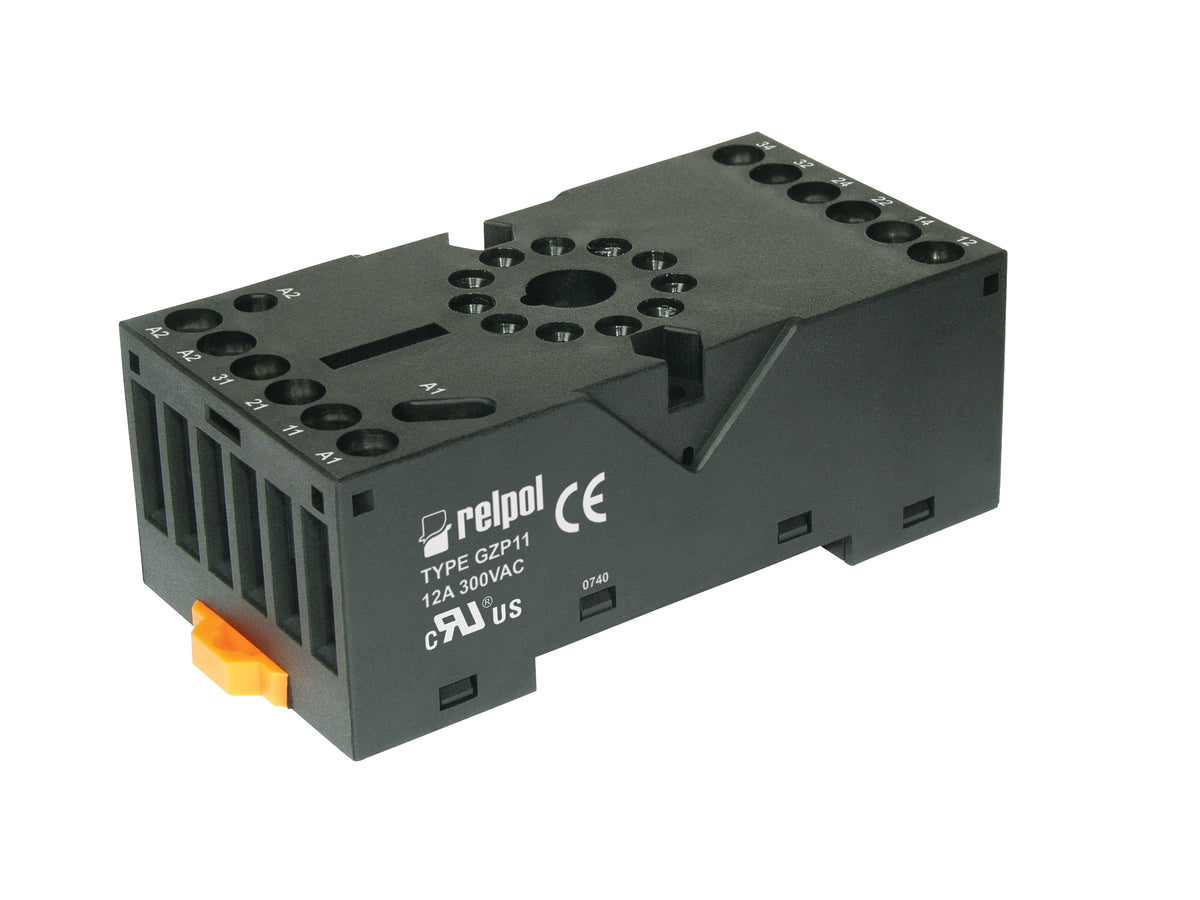

Relpol GZP11 – Relay Sockets & Bases

Plug-in socket for R15 3P relays (socket version) - gray color, width 38.2 mm. No circuit separation. Input / coil - terminals: (+)A1(2), (−)A2(10) - duplicated. Outputs / contacts - terminals: 11(1) - 12(4) - 14(3); 21(6) - 22(5) - 24(7); 31(11) - 32(8) - 34(9). Track load capacity - 12 A / 300 V AC. Dimensions: 73 x 38.2 x 27.2 mm. Mounting on a 35 mm rail or on a mounting plate with two M3 screws. Set dimensions: GZP11 socket + R15 3P relay + GZP-0054 clamp: 73 x 38.2 x 85.6 mm. Note: the GZP-0054 spring clip must be ordered separately for the socket (it increases the height of the socket + relay set by approximately 4 mm). A COM3 time module can be installed in the socket. For the IP20 set. Matching slot modules: module type 21 and 41.

Technical specifications
