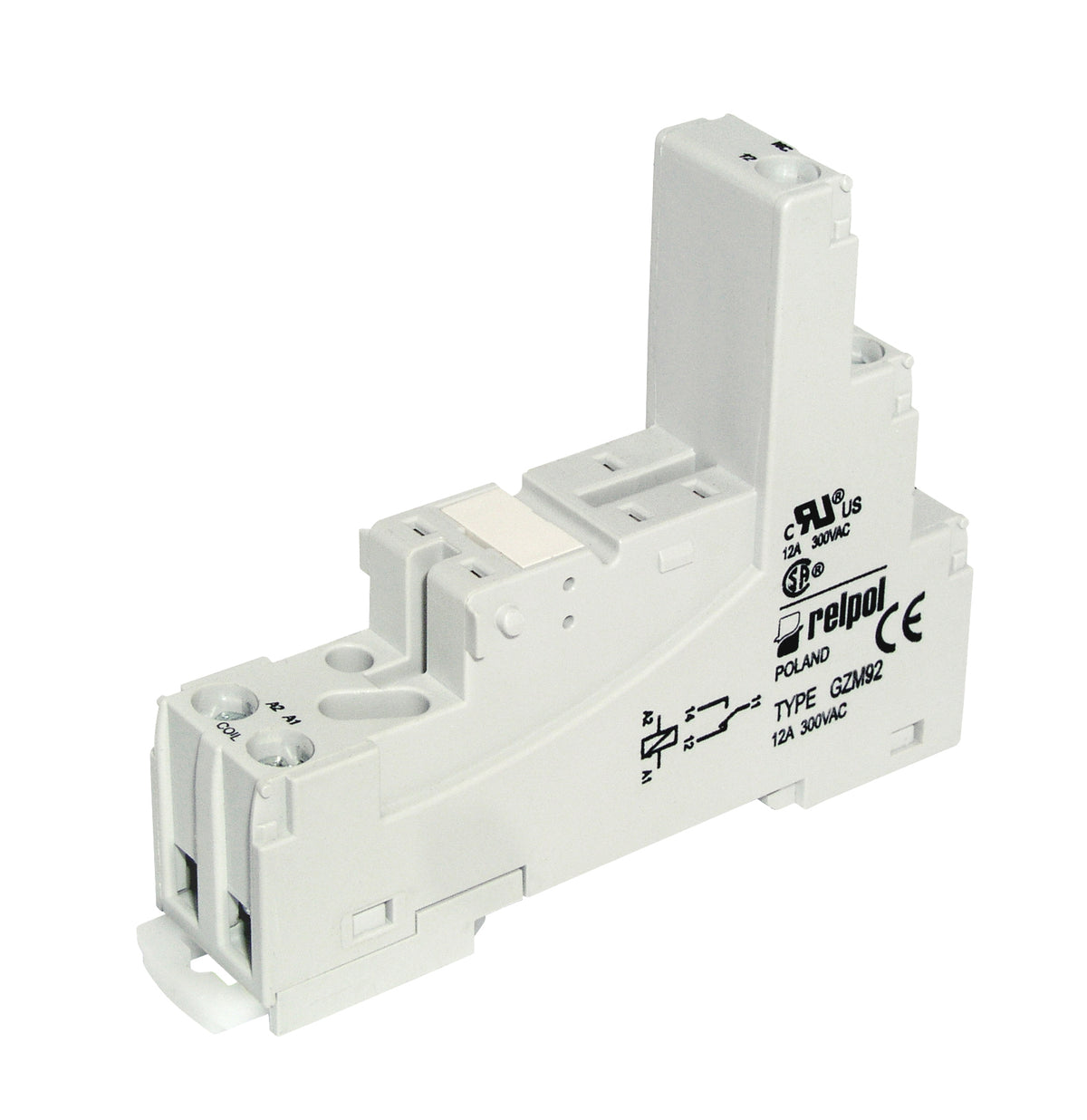

Relpol GZM92 – Relay Sockets & Bases
Relpol GZM92 – Relay Sockets & Bases
Price on request
Dostava se obračuna ob zaključku nakupa.
Socket for relays: RM87N. Grey colour. Screw terminals. Max. tightening moment for the terminal: 0,7 Nm. 35 mm rail mount acc. to PN-EN 60715 or on panel mounting 78,1 x 15,9 x 61(66,5) mm. One pole, 3,5 mm pinout. Rated load 12 A, 300 V AC.
Technical specifications
| Mounting | with screw terminals |
|---|---|
| Depth | 81,6 |
| Width mm | 15,9 |
| Height mm | 61 |
| Weight kg | 0,04 |
| Relay type | Socket GZM92 - screw terminals |
| Ip cover | IP 20 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
