Relpol
Inventarna številka:GZM80

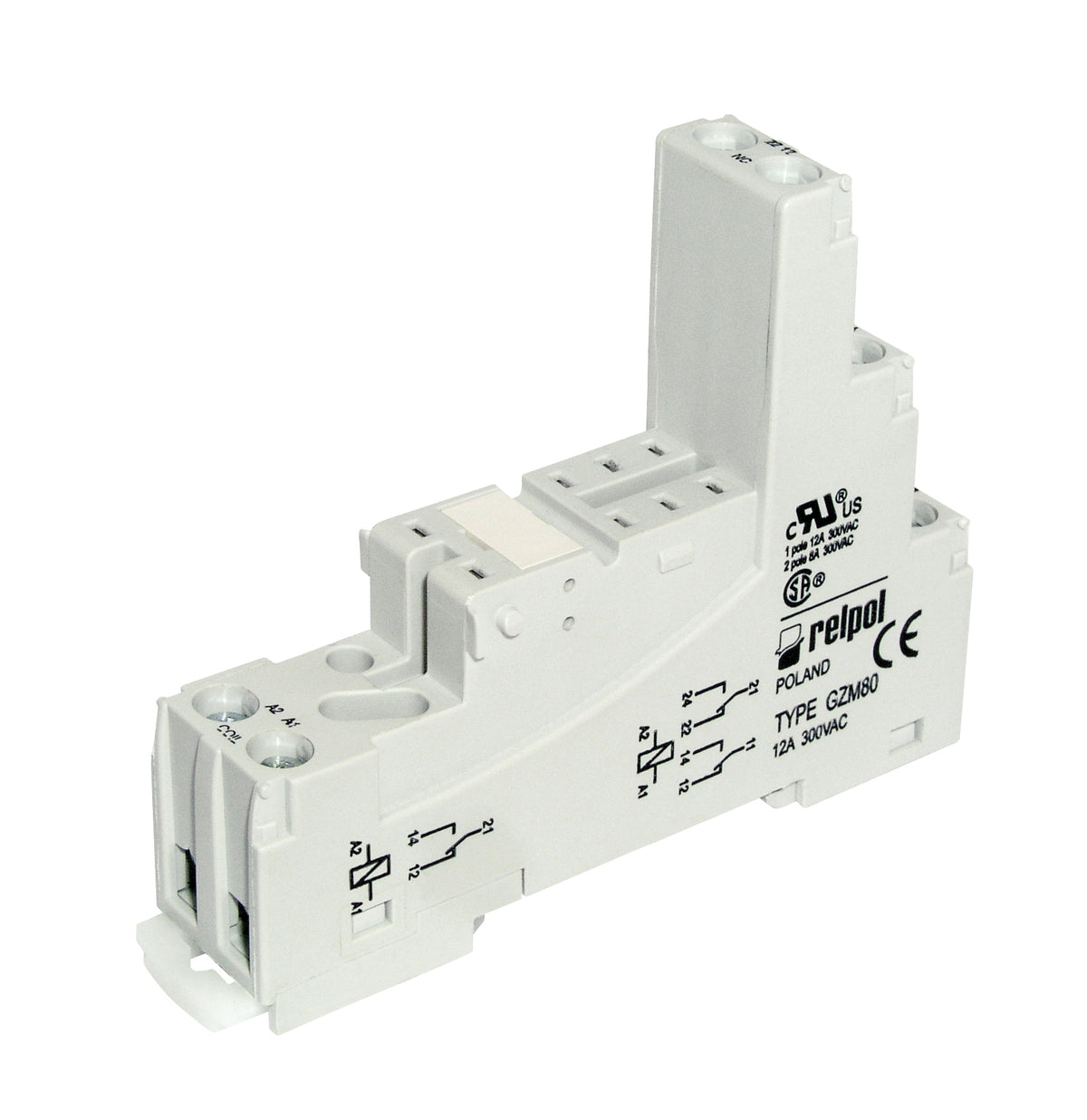

Relpol GZM80 – Relay Sockets & Bases
Relpol GZM80 – Relay Sockets & Bases
Redna cena
€4,57 EUR
Redna cena
Znižana cena
€4,57 EUR
Dostava se obračuna ob zaključku nakupa.
Količina
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
Socket for relays: RM84, RM85, RM85 inrush, RM85 105 °C sensitive, RM87L, RM87L sensitive,RM87P, RM87P sensitive. Grey colour. Screw terminals. Max. tightening moment for the terminal: 0,7 Nm. 35 mm rail mount acc. to PN-EN 60715 or on panel mounting 78,1 x 15,9 x 61(66,5) mm. Two poles, 5 mm pinout. Rated load 12 A, 300 V AC.
Technical specifications
| Mounting | with screw terminals |
|---|---|
| Depth | 81,6 |
| Width mm | 15,9 |
| Height mm | 61 |
| Weight kg | 0,044 |
| Relay type | Socket GZM80 - screw terminals |
| Ip cover | IP 20 |
