Relpol GZM3 – Relay Sockets & Bases

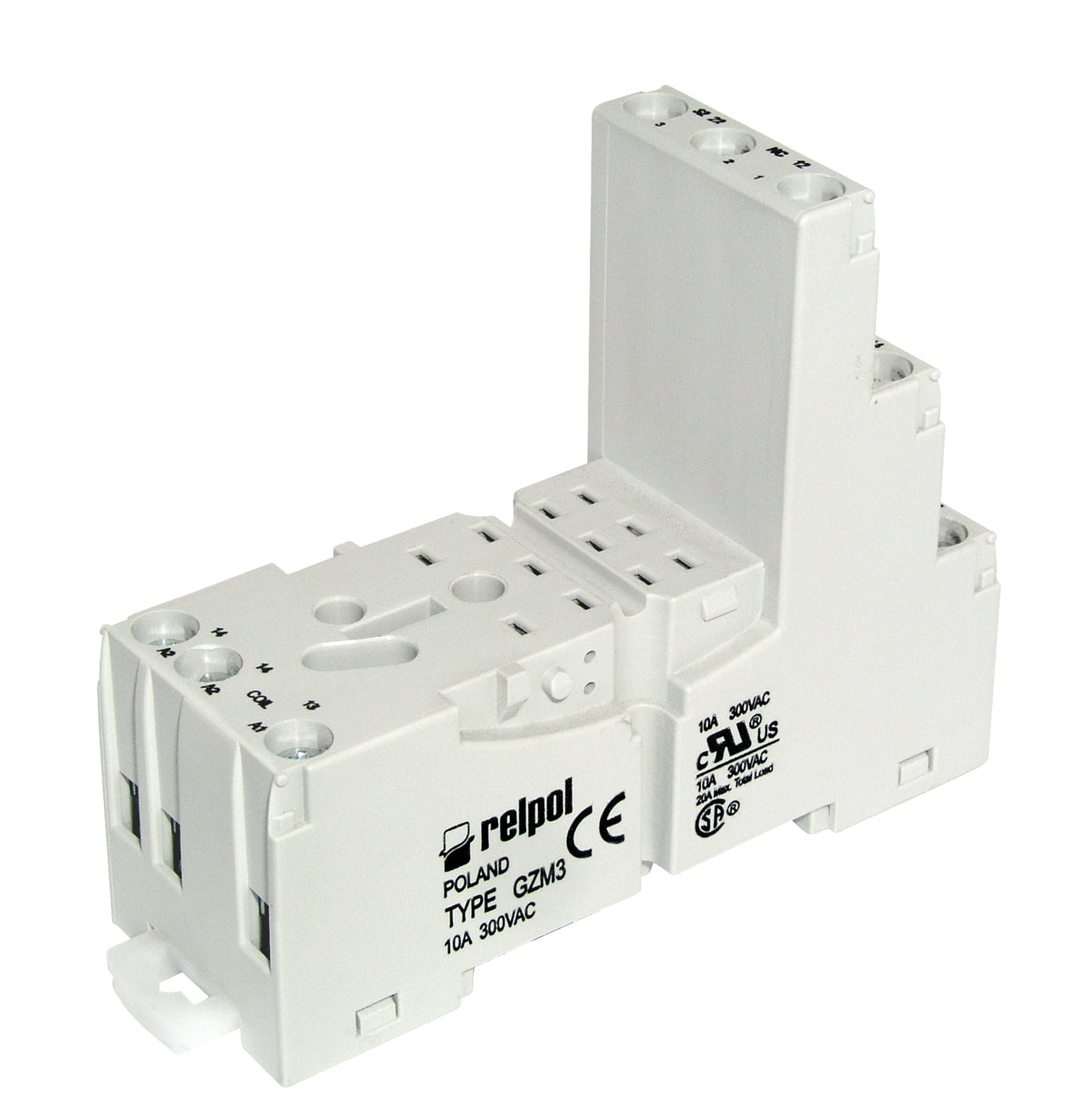

Plug socket, for R3N relay - width 27 mm. Circuit separation - coil terminals on one side and contact terminals on the opposite side of the socket. Input / coil - terminals: (+)A1(13) - (-)A2(14) - double terminal A2. Output / contacts - terminals: 11(7)-12(1)-14(4); 21(8)-22(2)-24(5); 31(9)-32(3)-34(6). Track load capacity: 10 A / 300 V AC. Mounting on a 35 mm rail or on a mounting plate with two M3 screws. Dimensions of the GZM3 + R3N + GZT4-0040 set: 75 x 27 x 82 mm; GZM3 + R3 + G4 1052 set: 75 x 27 x 68.6 mm. Note: the GZT4-0040 type clamp must be ordered separately for the socket, the so-called ejector, made of plastic or spring clamp G4 1052. M... type signaling/anti-overvoltage modules can be installed in the socket; Set - IP 20.

Technical specifications
