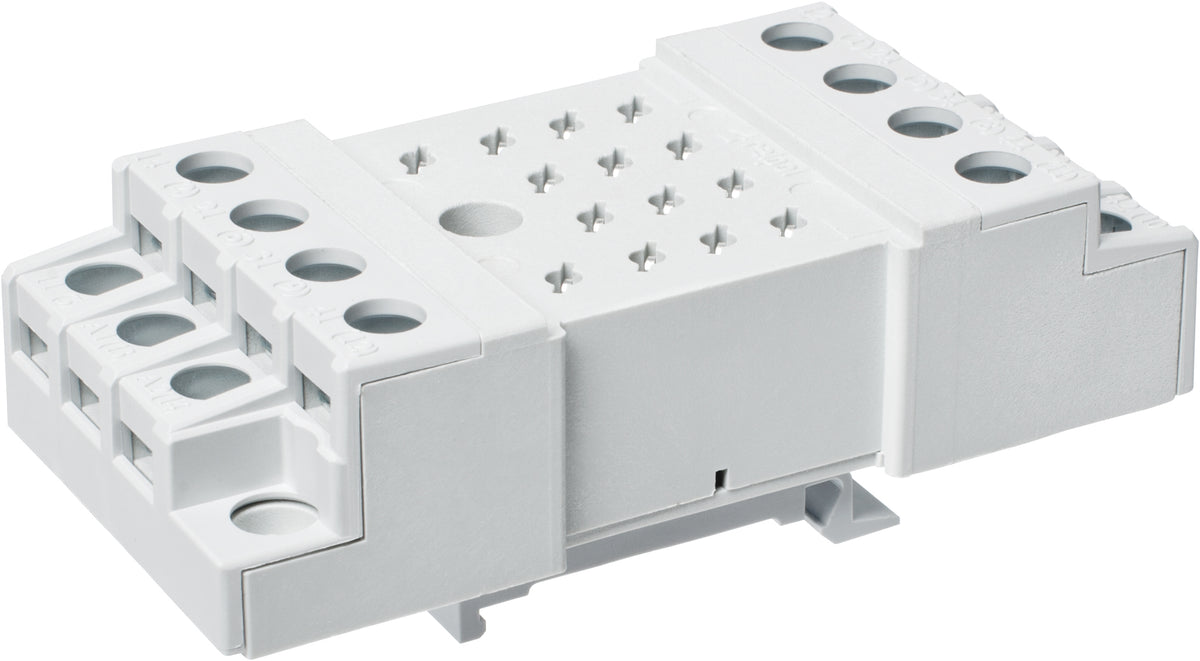

Relpol GZ14U – Relay Sockets & Bases

Plug-in socket, for R15 4P relay (socket version) - gray color, width 46 mm. No circuit separation. Input / coil - terminals: (+)A1(13) - (-)A2(14). Output / contacts - terminals: 11(3)-12(1)-14(2); 21(6)-22(4)-24(5); 31(9)-32(7)-34(8); 41(12)-42(10)-44(11). Track load capacity: 10 A / 250 V AC. Dimensions: 81 x 46 x 31 mm. Mounting on a 35 mm rail. Set dimensions: GZ14U socket + R15 4P relay + GZ14 0737 clamp: 81 x 46 x 89.5 mm. Note: a spring clamp type GZ14 0737 must be ordered separately for the socket (it increases the height of the socket + relay set by approximately 4 mm). Set - IP 20.
