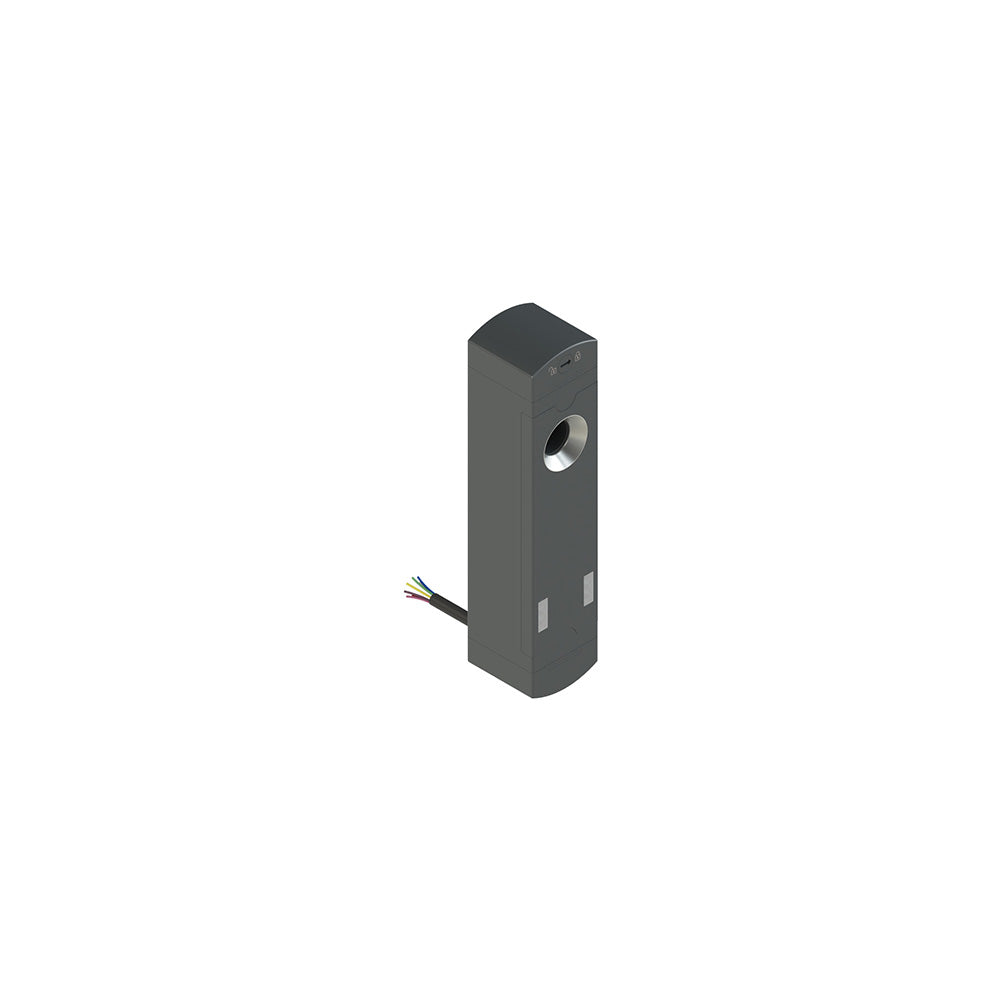

NS L4AZ1DB2

NS series safety locking switch, Actuator: Without actuator , Housing: Technopolymer housing, Working method: L working method, locked actuator with de-energised solenoid; Mode 3: first safety output active with inserted and locked actuator, second safety output active with inserted actuator, Inputs and outputs : 2 safety outputs OS1-OS2, ; 1 signalling output O3: actuator inserted, ; 2 solenoid activation inputs IE1-IE2, ; 1 programming / reset input I3, Auxiliary release with variable orientation: Front screw release, Output connection direction: Side cable or connector, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Button configuration: No device.

Technical specifications

Documentation

• English catalogue / technical documentation 1
