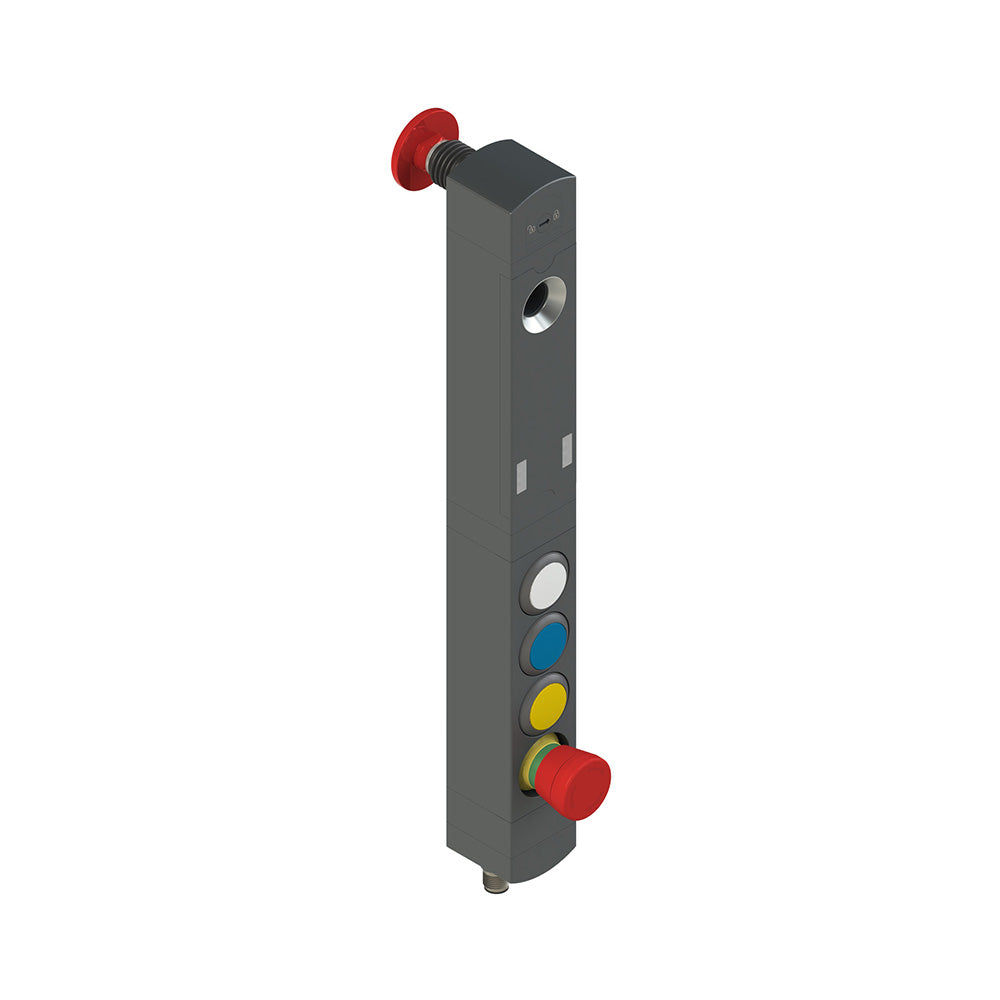

NS D4CE1SRK-N005

NS series safety switch with lock and integrated control devices, Actuator: Without actuator , Housing: Technopolymer housing, Working method: D working method, locked actuator with de-energized solenoid; Mode 1: OS safety outputs active with locked protection, Inputs and outputs : 2 safety inputs IS1-IS2, ; 2 safety outputs OS1-OS2, ; 1 signalling output O3: actuator inserted, ; 1 signalling output O4: actuator locked, ; 2 solenoid activation inputs IE1-IE2, ; 1 programming / reset input I3, Auxiliary release with variable orientation: Front screw release and rear emergency pushbutton, Output connection direction: Cable or connector at bottom, Type of connection: Two M12 connectors (12-pole + 12-pole), Protection degree: IP65 according to EN 60529, Button configuration: 4 devices, Position 1: 1 pushbutton white 1NO, Position 2: 1 pushbutton blue 1NO, Position 3: 1 pushbutton yellow 1NO, Position 4: 1 red emergency stop button, turn to release, 2NC.

Technical specifications

Documentation

• English catalogue / technical documentation 1
