Pizzato
Inventarna številka:NF G120BE-DN2
NF G120BE-DN2
NF G120BE-DN2
Availability: Ships in 2–3 weeks
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

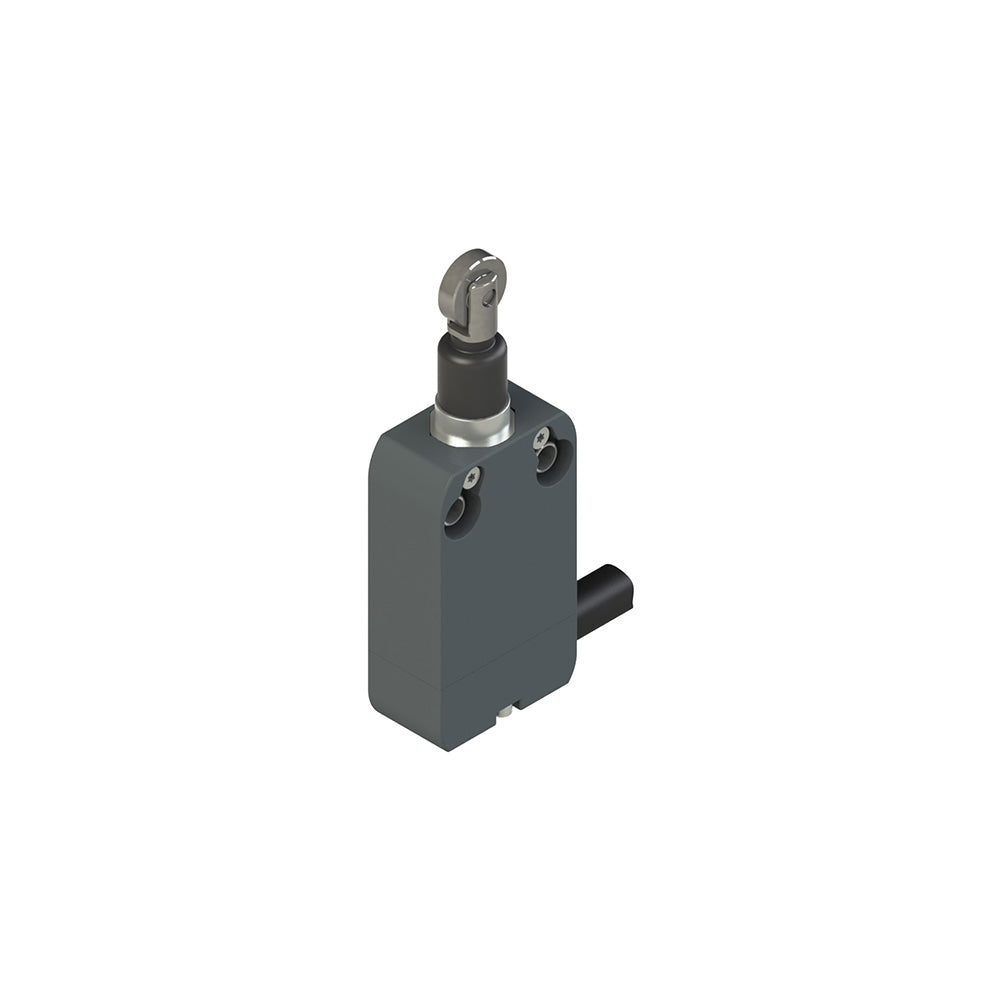

Modular prewired switch with roller plunger with rubber gasket, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Technopolymer housing, 20 mm fixing points, Contact block: 1NO+2NC slow action (G12), Head: Roller plunger with external rubber gasket, Kind of connection: Technopolymer connector 1NO+2NC, Cable: PVC 6x0,5 mm?, lenght 2 m, 6 wires, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NF G120BE-DN2 |
|---|---|
| EAN | 8018851185403 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | NF |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
