Pizzato
Inventarna številka:NF B220AC-DN5
NF B220AC-DN5
NF B220AC-DN5
Availability: Ships in 2–3 weeks
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

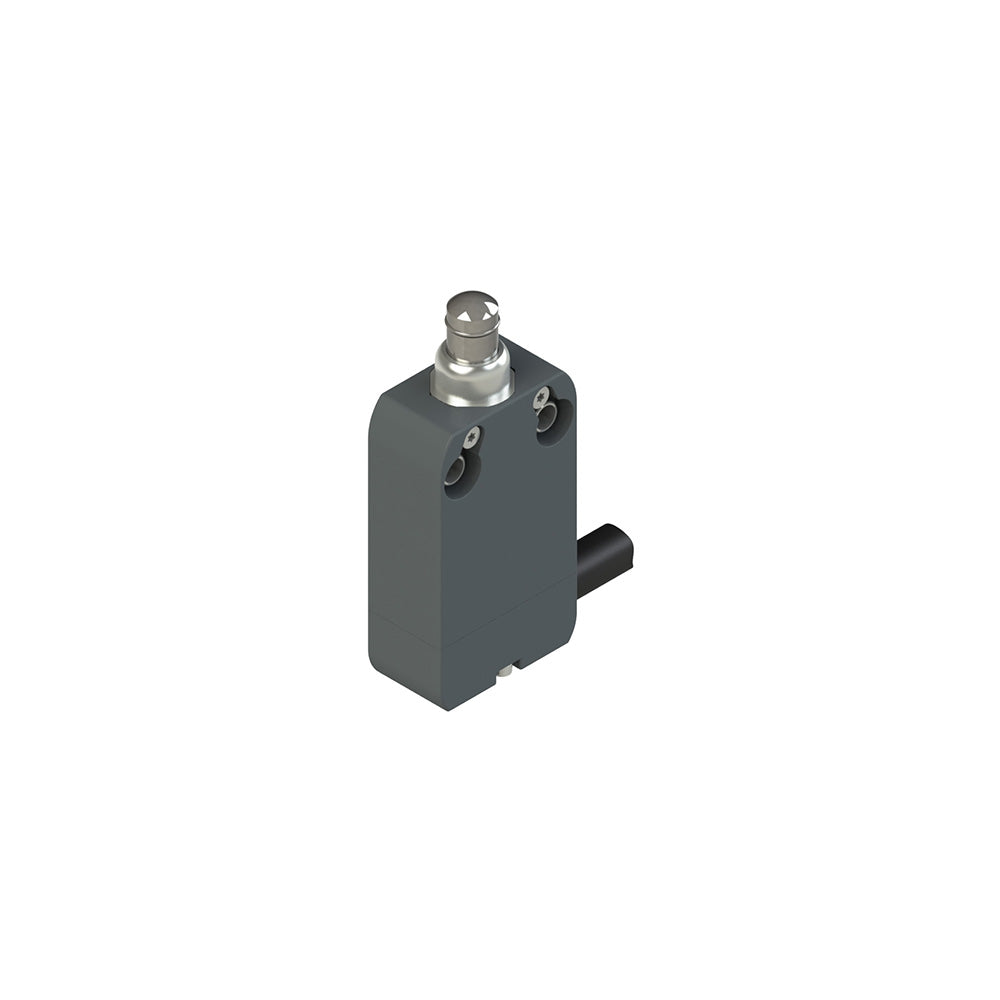

Modular prewired switch with long plunger, Modular prewired switch, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Technopolymer housing, 20 mm fixing points, Contact block: 2NO+2NC snap action (B22), Head: With long plunger, Kind of connection: Technopolymer connector 2NO+2NC, Cable: PVC 8x0,34 mm?, lenght 5 m, 8 wires, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NF B220AC-DN5 |
|---|---|
| EAN | 8018851554636 |
| Minimum order quantity | 1 |
| Weight | 394 g |
| Customs tariff number | 85369095 |
| Product range | NF |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
