Pizzato
Inventarna številka:NB B222KA-DN2
NB B222KA-DN2
NB B222KA-DN2
Availability: Ships in 2–3 weeks
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

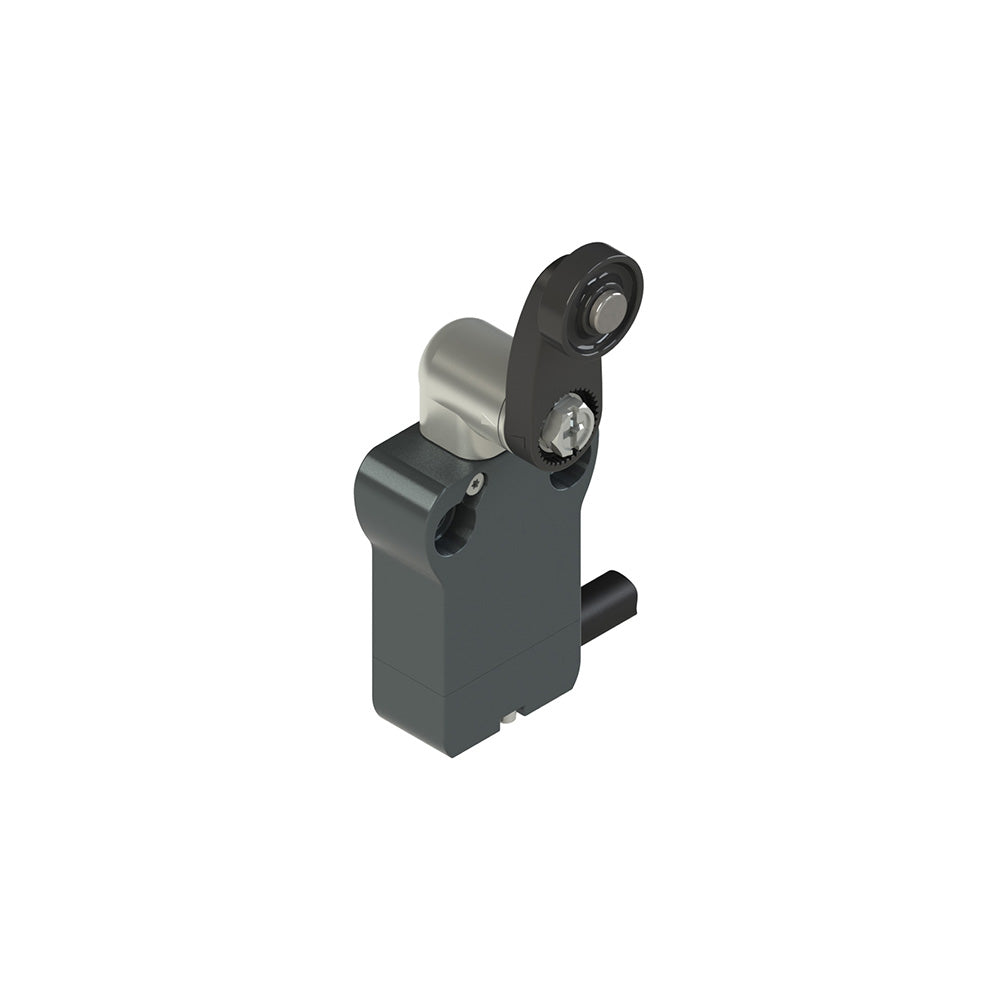

Modular prewired switch with straight plastic revolving lever diam. 18, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Metal housing, 25 mm fixing points, Contact block: 2NO+2NC snap action (B22), Head: Metal head for actuators with revolving lever, Kind of connection: Metal connector 2NO+2NC, Cable: PVC 9x0,34 mm?, lenght 2 m, 9 wires, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NB B222KA-DN2 |
|---|---|
| EAN | 8018851186899 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | NA - NB |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
