Pizzato
SKU:FX 1896-M2
FX 1896-M2
FX 1896-M2
Regular price
€20,37 EUR
Regular price
Sale price
€20,37 EUR
Shipping calculated at checkout.
Availability: Ships in 2–3 weeks
Quantity
Couldn't load pickup availability

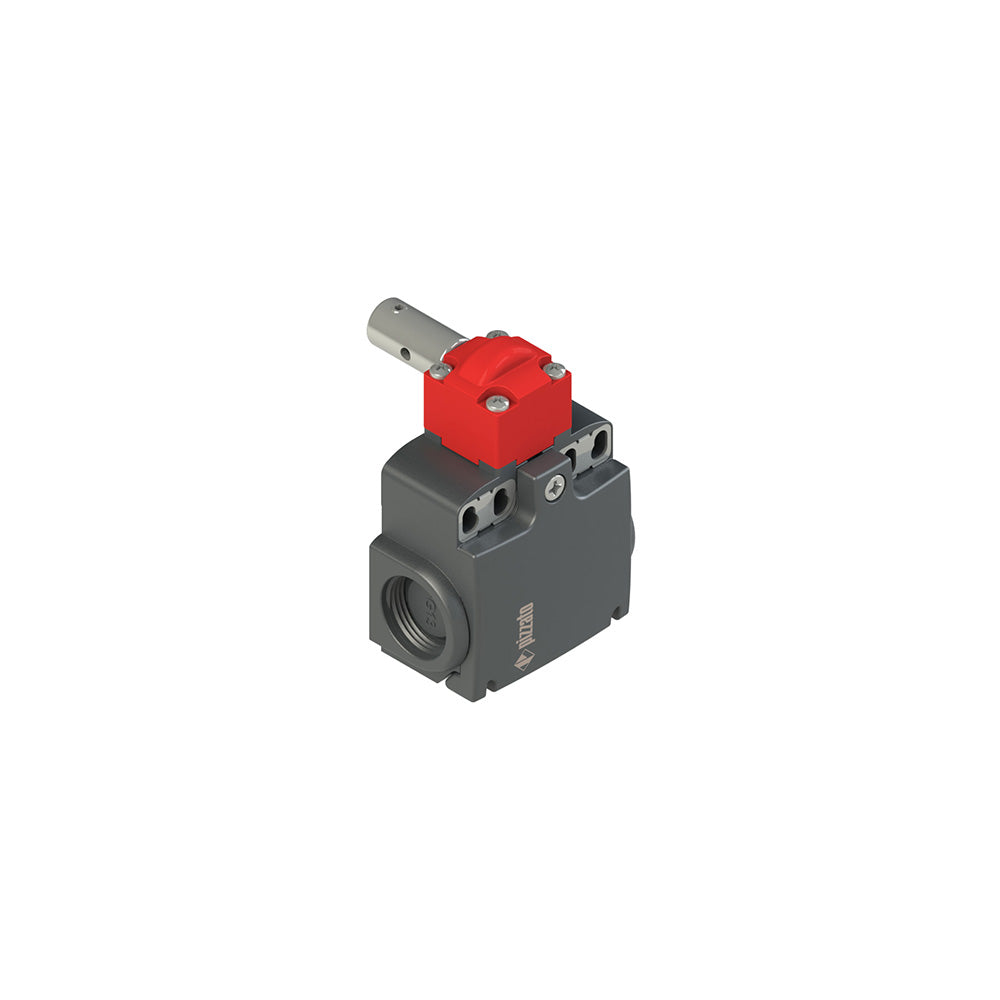

Safety switch for hinged doors, Housing: Technopolymer housing, two knock-out threaded conduit entries M20x1,5 (FX series), Contact block: 1NO+1NC slow action, closer contacts (B18), Head: Actuator with hole (standard), Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FX 1896-M2 |
|---|---|
| EAN | 8018851318498 |
| Minimum order quantity | 1 |
| Weight | 131 g |
| Customs tariff number | 85369095 |
| Product range | Hinge operation - normal duty |
| ETIM class | EC002591 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
