Pizzato
Inventarna številka:FX 1552
FX 1552
FX 1552
Availability: Ships in 2–3 weeks
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

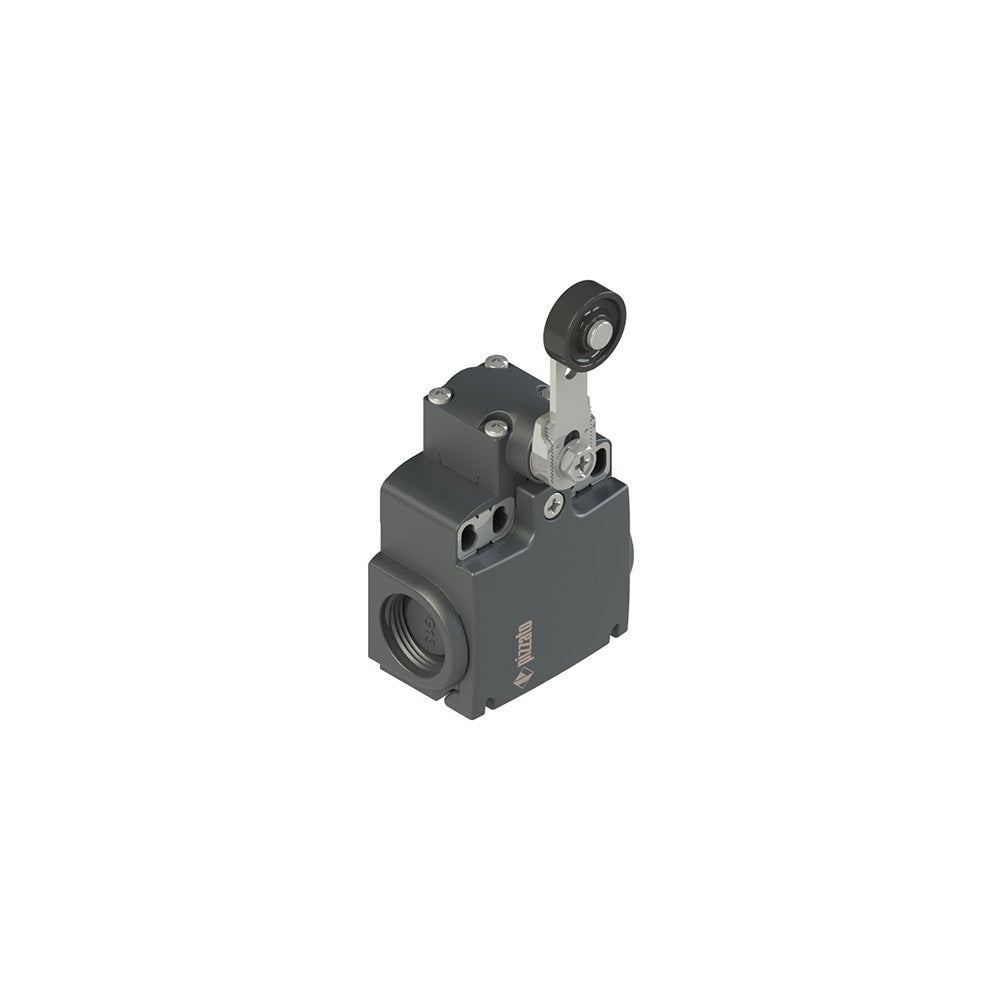

Position switch with roller lever, Housing: Technopolymer housing, two knock-out threaded conduit entries PG 13,5 (FX series), Contact block: 2NO slow action, shifted contacts (B15), Head: Regular head for rotating levers , Actuator: Straight lever with technopolymer roller, 20 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653.
Technical specifications
| Manufacturer part number | FX 1552 |
|---|---|
| EAN | 8018851044663 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | FX |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
