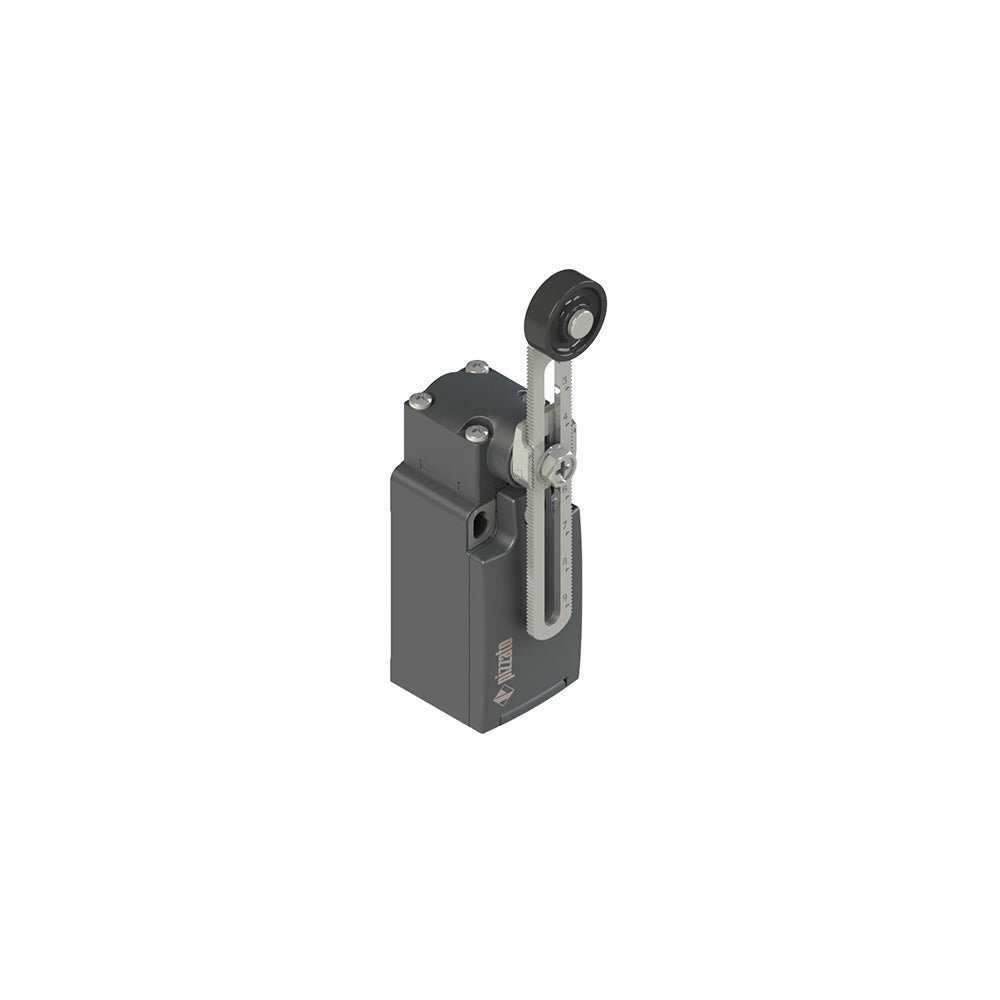

FR 555

Position switch with adjustable lever and roller, Housing: Technopolymer housing, one threaded PG 13,5 conduit entry (FR series), Contact block: 1NO+1NC snap action (B5), Head: Regular head for rotating levers , Actuator: With adjustable technopolymer roller lever, 20 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes (with lever adjusted to maximum length), Positive opening: Yes.

Technical specifications

Documentation

• English catalogue / technical documentation 1
