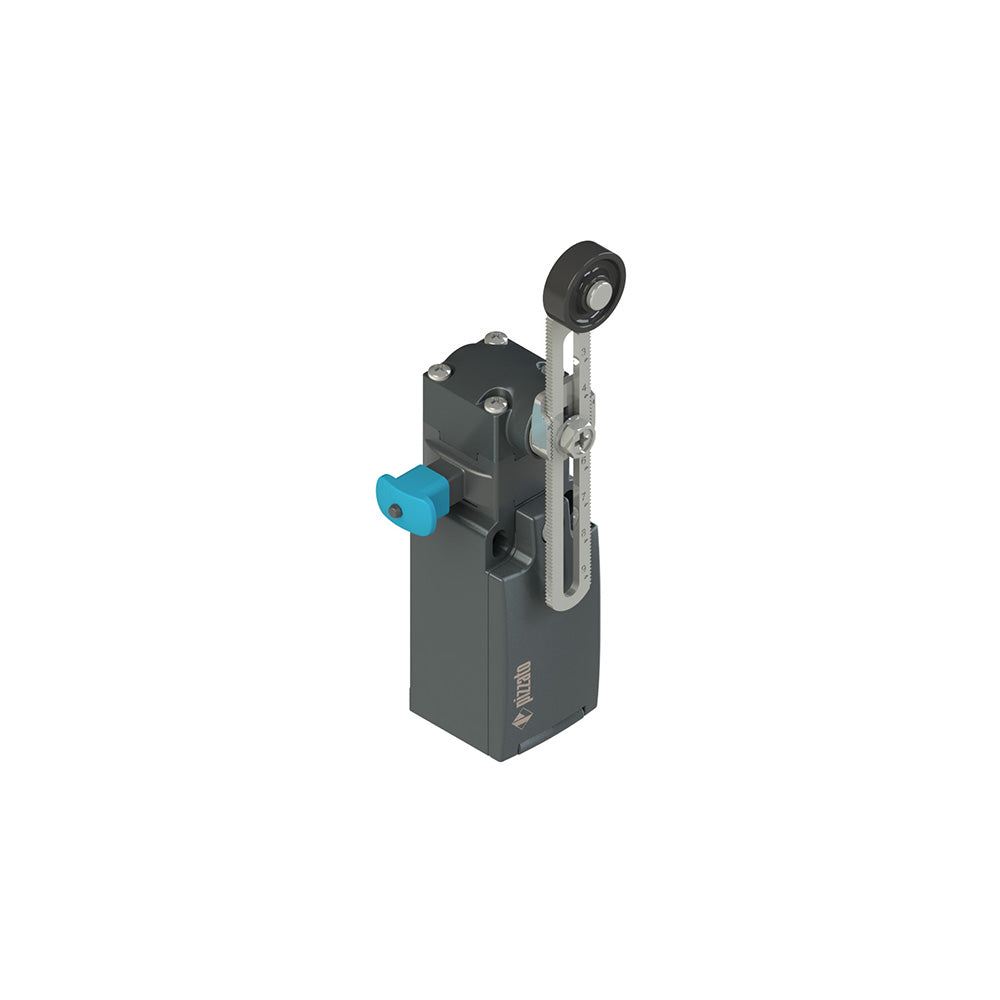

FM 2256-W3

Position switch with adjustable roller lever and reset device, Housing: Metal housing, one threaded PG 13,5 conduit entry (FM series), Contact block: 2NO+1NC slow action (B22), Head: With reset device, for rotating levers, Actuator: Adjustable safety lever with technopolymer roller, 20 mm diameter, Protection degree: IP67 according to EN 60529, Positive opening: Yes.

Technical specifications

Documentation

• English catalogue / technical documentation 1
