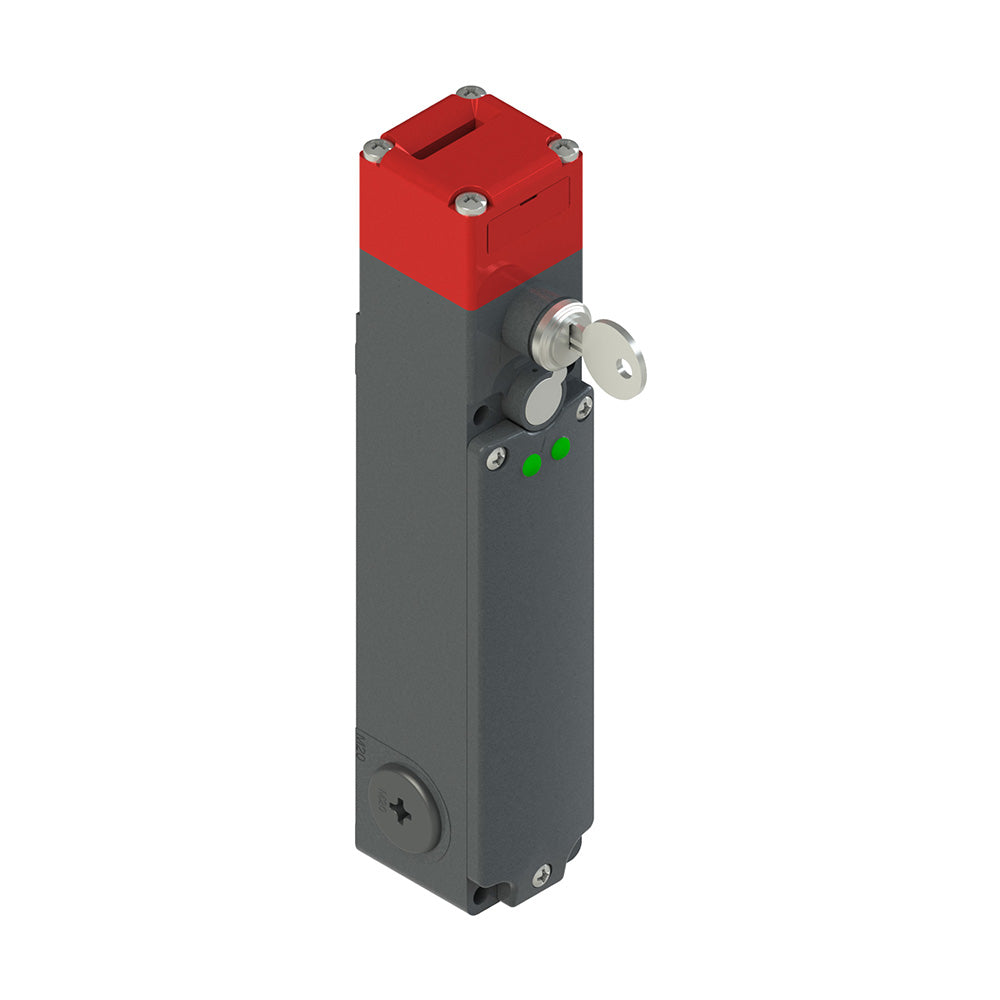

FG 60TD5D1A

FG series safety switch with separate actuator with lock, Working method: D working method, locked actuator with de-energized solenoid, Protection degree: IP67 according to EN 60529 with cable gland having equal or higher protection degree, Housing: Metal housing, three M20x1,5 cable entries, Contact block: 1NO+2NC moved by actuator and 1NC moved by solenoid, Head: Rotating head with lock auxiliary release device, Power: 120 Vac/dc, LED: 2 green LED switched-on by the solenoid power supply, Actuator: Without actuator , Positive opening: Yes.

Technical specifications

Documentation

• English catalogue / technical documentation 1
